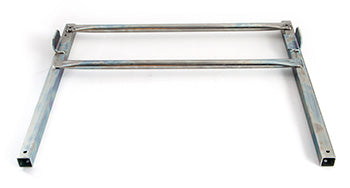

H-Frame 376-24-W18 Vertical Bracket for SQ 32, 22-7/8 Height
NF H-FRAME 376-24-W18
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description
Sq 32 ht 22-7/8 vert w/2brkt
Frequently Asked Questions
Q: What are the dimensions of the NF H-FRAME 376-24-W18?
A: The NF H-FRAME 376-24-W18 has a square frame design with a height of 32 inches and vertical depth of 22 and 7/8 inches. It includes two mounting brackets for gravity conveyor applications.
Q: What does the square frame design mean for the NF H-FRAME 376-24-W18?
A: The square designation indicates equal or nearly equal width and depth dimensions, providing balanced support in both horizontal planes. This design is suited for conveyors that need uniform load distribution and stability.
Q: How do the 375 and 376 series H-frames differ?
A: The 375 series has a rectangular frame geometry, while the 376 series features a square design. The NF H-FRAME 376-24-W18 provides 22 and 7/8 inches vertical depth versus the 375 models 23 inches. Select based on your conveyor structure geometry and support requirements.
Q: What is the two-bracket configuration for the NF H-FRAME 376-24-W18?
A: The W18 designation indicates two mounting brackets integrated into the frame design. These brackets distribute loads across dual connection points, increasing frame stability and supporting higher-throughput conveyor operations.
Q: Is the NF H-FRAME 376-24-W18 suitable for impact-duty applications?
A: The 376 series is standard gravity conveyor frame construction without impact reinforcement. Use it for normal package flow and low-drop applications. For high-impact or shock-load conveyors, specify impact-duty rated frames such as the 375IMPACT series.
