Product Description

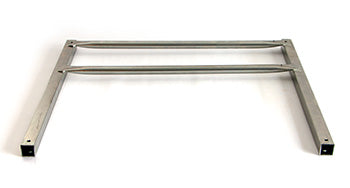

Sq 34-5/8 ht 25-1/2 vert
Frequently Asked Questions
Q: What are the dimensions of the NF H-FRAME 376-24FL-W09?
A: The NF H-FRAME 376-24FL-W09 has a 34-5/8-inch square width and 25-1/2-inch vertical height. This is the largest frame in the 376 series, suitable for high-volume or wide-load conveyor applications.
Q: When should I use the W09 instead of smaller frame sizes?
A: Use the W09 when your conveyor must handle wider packages, pallets, or higher throughput. The larger footprint (34-5/8 inches) and greater height (25-1/2 inches) provide additional load distribution. Confirm your facility floor space accommodates this size.
Q: Is the W09 frame compatible with standard roller and bearing sizes?
A: Roller and bearing compatibility depends on conveyor model. The larger frame may require longer or heavier-duty rollers and bearings. Provide your conveyor specifications for compatibility confirmation.
Q: What is the weight capacity of this frame?
A: Weight capacity depends on installed belt or roller specifications and the number of support points. Contact us with your load per package, packages per minute, and conveyor model for a capacity calculation.
Q: Can the W09 frame be used to replace smaller frames in an existing conveyor?
A: Frame upgrades require verification of attachment points, connection spacing, and structural support. The W09 is larger than W01, W02, W04, and W06 models. Engineering review is recommended before retrofitting existing conveyors.
Q: How does height affect discharge point clearance?
A: The 25-1/2-inch vertical dimension on the W09 is the tallest in the 376 series. Verify that your downstream equipment and facility layout accommodate the increased height before ordering.
