Product Description

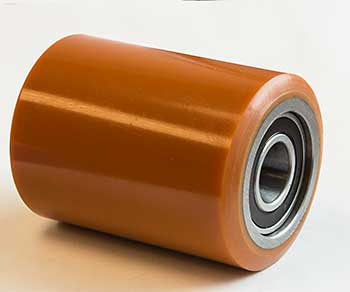

The Durarun 95A polyurethane load wheel assembly is engineered for Nissan WLX Series electric pallet trucks, delivering reliable performance in warehouse and material handling applications. Featuring a 3.25-inch diameter with pressed twin 6205 RS sealed bearings, this wheel provides smooth rotation and extended service life. The high-rebound polyurethane tread is non-marking and suitable for concrete and sealed floor environments.
Specifications
Material & Construction
| Tread Material | Polyurethane, high-rebound grade |
| Wheel Core Material | Machined steel |
Part Numbers
| Manufacturer Part Number | NI 40350-SW000 |
| OEM Part Number | 40350-SW000 |
| Equivalent Part Numbers | NI 40350SW000, 40350SW000, UK40350-SW000, GW-806-A |
| Cross-Reference Part Numbers | Replaces Nissan 40350-SW000, supersedes 40350SW000, equivalent to UK40350-SW000, GW-806-A |
Frequently Asked Questions
Q: What Nissan pallet truck models does the NI 40350-SW000 fit?
A: The NI 40350-SW000 Durarun 95A poly load wheel is designed for Nissan WLX Series electric pallet trucks. It directly replaces 40350-SW000 and cross-references to UK40350-SW000 and the house brand equivalent GW-806-A. Verify your equipment model and 2.047 inch bore before ordering.
Q: What are the dimensions and load capacity of the NI 40350-SW000?
A: The NI 40350-SW000 measures 3.25 inches in diameter and 4.50 inches in width with a 2.047 inch bore. It features pressed twin 6205 RS bearings for precision rotation. Load capacity and service conditions are defined by the WLX Series truck specifications.
Q: What bearing type does the NI 40350-SW000 use?
A: The NI 40350-SW000 is equipped with pressed twin 6205 RS bearings. The RS designation indicates rubber-sealed shields on each bearing, providing protection against moisture and dust. The twin bearing configuration distributes load evenly across the wheel hub.
Q: What is the tread material and durability specification?
A: The NI 40350-SW000 features Durarun 95A polyurethane tread, a non-marking formulation at 95 Shore A hardness. The 95A durometer provides good wear resistance and rebound for standard warehouse applications on concrete and sealed floors.
Q: What are the cross-reference and equivalent part numbers?
A: The NI 40350-SW000 replaces Nissan 40350-SW000, supersedes the older 40350SW000 designation, and is equivalent to UK40350-SW000 and GW-806-A. When ordering replacements or interchange parts, use the exact part number that matches your equipment documentation.
Q: How does the pressed twin 6205 RS bearing design compare to other load wheels?
A: The pressed twin 6205 RS bearing configuration provides precision rotation, extended bearing life, and consistent performance. This design is standard on WLX Series equipment and differs from pressed-fit wheels without bearings. The sealed RS design reduces maintenance compared to open bearing wheels.
