Product Description

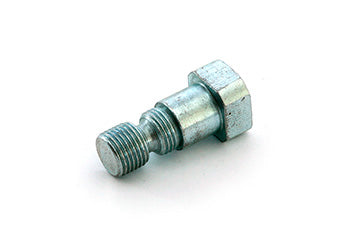

Technical shoulder bolt (SKU NL L204) designed with 1/4 inch shoulder diameter, 1-1/4 inch shoulder length, 1/4"-20 UNC thread
Specifications
Material & Construction
| Material Specification | Alloy steel |
| Steel Grade | Grade 8 |
| Hardness | Rockwell C32 minimum |
Frequently Asked Questions
Q: What are the dimensions of the NL L204 shoulder bolt?
A: The NL L204 is a technical shoulder bolt with a 1/4 inch shoulder diameter, 1-1/4 inch shoulder length, and a 1/4 inch-20 UNC thread. These dimensions are precise and critical for proper assembly fitment.
Q: What is the material grade and hardness of the NL L204 shoulder bolt?
A: The NL L204 is manufactured from alloy steel, Grade 8, with a minimum Rockwell C32 hardness rating. This specification ensures high tensile strength and resistance to fatigue stress in load-bearing applications.
Q: Which pallet jack and material handling equipment types use the NL L204 shoulder bolt?
A: The NL L204 shoulder bolt is compatible with manual pallet jacks, hand trucks, and material handling equipment from Crown, Toyota, Raymond, and other OEM manufacturers. Verify exact fitment with your equipment technical documentation.
Q: Why is the shoulder bolt design important for the NL L204?
A: The shoulder design on the NL L204 provides precise spacing and alignment between components while the fastening portion secures the assembly. The 1-1/4 inch shoulder length ensures proper load distribution without compression of adjacent parts.
Q: Can the NL L204 shoulder bolt be reused if removed?
A: Grade 8 bolts can typically be reused if removed carefully without stripping. Inspect the threads and shoulder for damage. Replace if the bolt shows bending, corrosion, thread damage, or was over-tightened during previous assembly.
