Product Description

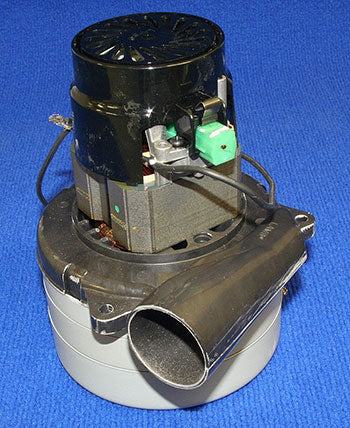

36V DC three-stage vacuum motor for NSS Wrangler 3330 and 2730 floor scrubbers. Motor provides 0.75 horsepower, delivers 73 CFM airflow and 70 inch waterlift. Tangential discharge blower, Packard plug, compatible with OEM part number 33-9-3361 and equivalent to Ametek/Lamb 116343-00, designed for industrial floor cleaning equipment.
Specifications
Electrical
| Motor Voltage | 36VDC continuous duty |
| Motor Type | Universal, 3-stage blower |
| Motor Power | 0.75HP (560W) |
| Current Draw | 15.5A at rated load |
| Connector Type | Packard 2-wire plug |
| Duty Cycle | S2-30 min intermittent |
Material & Construction
| Housing Material | Reinforced polycarbonate fan housing |
Part Numbers
| OEM Part Number | 33-9-3361 |
| Manufacturer Part Number | NSS33-9-3361 |
| Cross-Reference Part Numbers | Replaces 33-9-3361, supersedes 3393361; equivalent Ametek/Lamb 116343-00 |
| Compatible Equipment Models | NSS Wrangler 3330, NSS Wrangler 2730 |
Performance
| Maximum Airflow | 73 CFM at open flow |
Frequently Asked Questions
Q: What are the specifications of the NSS33-9-3361 vacuum motor?
A: The NSS33-9-3361 is a 36VDC three-stage universal motor rated for continuous duty. It delivers 0.75 horsepower, produces 73 CFM airflow, and achieves 70 inch water lift. The motor features a tangential discharge blower and Packard plug connector for NSS Wrangler 3330 and 2730 floor scrubbers.
Q: Which floor scrubber models use the NSS33-9-3361 motor?
A: The NSS33-9-3361 is compatible with NSS Wrangler 3330 and NSS Wrangler 2730 floor scrubbers. The motor is designed as a direct replacement for OEM part number 33-9-3361.
Q: What are the cross-reference part numbers for the NSS33-9-3361?
A: The NSS33-9-3361 replaces OEM part number 33-9-3361 and supersedes 3393361. It is equivalent to Ametek/Lamb part number 116343-00.
Q: Can the NSS33-9-3361 motor be used in wet environments?
A: The NSS33-9-3361 is rated for 36VDC continuous duty industrial floor cleaning applications. Always verify voltage compatibility with your equipment and ensure proper electrical connections before operation.
Q: What is the expected lifespan of the NSS33-9-3361 motor?
A: Motor lifespan depends on maintenance, operating hours, and load conditions. Regular filter changes and proper ventilation around the motor housing extend service life significantly.
