Product Description

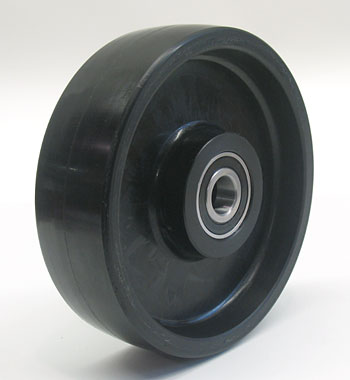

The Nylon Steer Wheel Assembly is designed for durability and smooth operation in various applications. This high-quality wheel includes bearings for enhanced performance and reliability.
Specifications: 7.000 inch diameter x 2.000 inch width (7.000" x 2.000" | 7 x 2 wheel | 7 x 2 | 177.80mm x 50.80mm) | Bearing ID: 20mm (0.787 inch bore | 20.000mm ID)
• Constructed from durable nylon for long-lasting use
• Includes precision bearings for smooth steering
• Lightweight design for easy handling and installation
This steer wheel assembly is compatible with a variety of carts and equipment, making it an essential component for efficient mobility.
Specifications
Wheel Dimensions
| Outside Diameter | 7 |
| Width Side to Side | 2 |
Frequently Asked Questions
Q: Is the GW 334 wheel compatible with a 20mm bore steering axle?
A: Yes, the GW 334 features a 20mm bearing ID and is compatible with any steering assembly using a standard 20mm axle bore. The 7 inch diameter and 2 inch width match common manual pallet jack designs. Verify your current axle diameter before purchase to confirm fit.
Q: Does the GW 334 include bearings or do I need to supply my own?
A: The GW 334 is supplied as a wheel assembly without pre-installed bearings. You must transfer your existing bearings from the old wheel or install new sealed deep groove ball bearings rated for 20mm bore. Inspect old bearings for damage before reuse. Replace with new bearings if play or noise is present.
Q: What is the material composition and durability rating of the GW 334?
A: The GW 334 is constructed from durable nylon with precision bearings for smooth operation. The lightweight nylon design reduces fatigue on the steering column while maintaining rigidity. Nylon provides good chemical resistance and does not rust. Operating temperature range is typically -10 to 40 degrees Celsius for optimal performance.
Q: Can I use the GW 334 on a rear load-bearing wheel instead of just steering applications?
A: No. The GW 334 is designed specifically for steering (front) wheel applications on manual pallet jacks. Load-bearing rear wheels require different construction and bearing specifications. Using the GW 334 for rear load support will result in premature bearing failure and compromised steering control.
Q: What maintenance schedule is recommended for the GW 334 to maximize service life?
A: Perform visual inspection of the wheel tread and nylon core weekly for cracks or flat spots. Check bearing spin and listen for noise every two weeks. Clean the wheel area of debris monthly to prevent bearing contamination. Replace the wheel if the tread shows wear exceeding 0.125 inch depth or the nylon develops cracks. Typical service life is 12-20 months with proper maintenance.
