Product Description

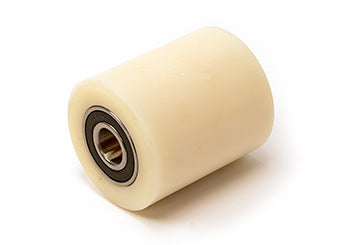

MG-536 Nylon Wheel/Bearing; precision-fit radial ball bearing assembly for manual pallet jack load and steer wheel replacement, manufactured by Liftsplus.com. Constructed from high-impact nylon with double-sealed steel bearings measuring 20 mm inner diameter, 47 mm outer diameter, and 14 mm width.
Compatibility: Fits pallet jacks made by Magnum Intrupa, model MG536. SKU: MG-536
Specifications
Material & Construction
| Bearing Construction | Steel, double sealed |
| Finish | Smooth nylon tread; bearing surfaces precision ground |
Part Numbers
| OEM Part Number | MG-536 |
| Supplier Part Number | MG-536 (Generic Parts Service) |
Frequently Asked Questions
Q: What is the MG-536 bearing assembly and what equipment does it fit?
A: The MG-536 is a nylon wheel bearing assembly with precision-fit radial ball bearings designed for manual pallet jack load and steer wheel replacement. It is compatible with Magnum Intrupa manual pallet jacks, model MG536. This bearing replaces worn wheel assemblies on both drive and steering wheels.
Q: What are the specifications and dimensions of the MG-536?
A: The MG-536 features a 20 mm inner diameter bore, 47 mm outer diameter, and 14 mm width. The bearing race is constructed from through-hardened high carbon steel with double-sealed steel ball bearings. The wheel itself is high-impact nylon with precision-ground bearing surfaces and smooth tread for standard floor use.
Q: How durable is the MG-536 bearing and what floor types can it handle?
A: The double-sealed steel bearing races and hardened ball bearings provide long service life in typical warehouse environments. The nylon wheel construction offers good wear resistance on concrete and smooth floors. The sealed bearing design protects against dust and moisture contamination, extending component life in dry indoor conditions.
Q: What maintenance does the MG-536 require?
A: Regularly inspect the nylon tread for uneven wear, flat spots, or damage. The double-sealed design minimizes lubrication maintenance needs, but check bearing rotation smoothness during routine equipment inspections. Replace when tread wear reduces traction or bearing rotation becomes rough or noisy.
Q: How long does the MG-536 bearing assembly last under normal use?
A: Under standard warehouse conditions with moderate loads, expect 18 to 36 months of service life. High-volume load handling or rough floors may reduce this timeframe. The double-sealed bearing design helps extend life by protecting internal races and balls from contamination.
