Product Description

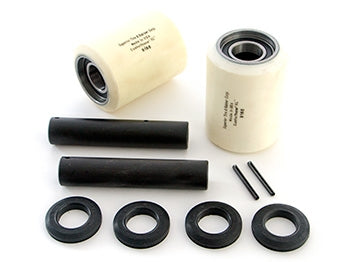

Aftermarket load wheel assembly kit engineered for Crown WP 3000 Series electric pallet jacks. Complete dual-wheel replacement system with 97A durometer polyurethane load wheels, precision steel axle shafts, sealed ball bearings, string guard protection, and mounting hardware. Direct OEM replacement configuration for maintenance and repair operations.
Compatibility: Fits pallet jacks made by Crown, model WP 3000. Alternate model: WP3000. SKU: GWK-WP3000-LW-XL
Specifications
Mechanical Components
| Load Wheel Material | Polyurethane compound, 97A Shore durometer hardness |
Part Numbers & Compatibility
| Manufacturer Part Number | GWK-WP3000-LW-XL |
| Equipment Compatibility | Crown WP 3000 Series electric pallet jack trucks |
| Alternative Part Number | GWK-WP3000-LW (95A durometer variant available) |
| Related Part Number | GWK-WP3000-NOSG-LW-XL (non-string guard variant) |
Frequently Asked Questions
Q: What is the key difference between GWK-WP3000-LW-XL and the standard GWK-WP3000-LW load wheel kit?
A: GWK-WP3000-LW-XL features 97A durometer polyurethane (versus 95A in the standard kit), includes string guard protection to prevent object entrapment around the wheel, and has a slightly larger overall diameter for improved load distribution. The XL variant provides enhanced wear resistance and safety compliance. Choose XL if your operation prioritizes durability, operates in high-traffic zones, or requires OSHA compliance for string guard protection. Standard GWK-WP3000-LW is a cost-effective alternative for light duty or indoor use.
Q: Is GWK-WP3000-LW-XL a drop-in replacement for Crown WP 3000, or does the string guard require modification to the truck frame?
A: GWK-WP3000-LW-XL is a direct bolt-on replacement. The string guard is pre-assembled to the wheel hub and does not require frame modification. Mounting fasteners and hub bore diameter match OEM specifications. Verify that the wheel wells have adequate clearance for the string guard extension (approximately 0.5 inch beyond standard wheel profile). If your truck has custom frame welding or non-standard brackets, inspect clearance before installation to avoid contact.
Q: Can I remove the string guard from GWK-WP3000-LW-XL if I want a standard wheel profile?
A: No. The string guard is welded to the wheel hub and cannot be safely removed without compromising wheel structural integrity and safety rating. If you require a standard wheel without string guard, order the alternative part number GWK-WP3000-NOSG-LW-XL (non-string guard variant with same 97A hardness). Do not attempt to cut or grind off the guard; this will void the warranty and create sharp edges.
Q: What is the real-world service life of 97A durometer polyurethane wheels in continuous warehouse operation?
A: Under continuous warehouse duty (8+ hours daily on smooth concrete), expect 18 to 24 months of service life from 97A wheels. Higher durometer provides superior wear resistance and maintains diameter longer than 95A or 87A variants. Inspect quarterly for flat spots, surface glazing, or polyurethane separation from the steel core. If wheel diameter drops more than 0.30 inch or surface becomes slick, replacement is needed. Storage at temperatures below 40 degrees F can degrade polyurethane; keep in climate-controlled areas when not in use.
Q: Does the string guard on GWK-WP3000-LW-XL impact truck maneuverability or clearance through doorways?
A: The string guard extends approximately 0.5 inch beyond the standard wheel profile, adding roughly 1 inch to the overall truck width. Standard doorways (36 to 42 inches) should not be impacted. Verify your facility doorway clearance before purchase; if operating through narrow aisles with tight side clearances, measure the truck frame width and confirm the 1-inch safety margin exists on both sides. The guard is designed for safety compliance and cannot be removed.
Q: What is the equivalent part number to GWK-WP3000-LW-XL, and does it cross-reference to other brands?
A: GWK-WP3000-LW-XL does not have a direct cross-reference to Yale, Hyster, or Toyota equipment due to proprietary hub and axle geometry. The non-string guard variant is GWK-WP3000-NOSG-LW-XL (same 97A durometer, no guard). If your Crown WP 3000 originally came with a different wheel brand, verify the hub bore and axle length match OEM specs before installing this kit. Do not force installation on non-Crown platforms.
