Product Description

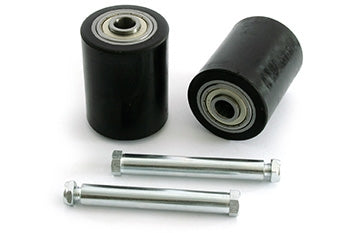

GWK-LR0655-LW load wheel kit designed for Lift-Rite and Big Joe manual pallet jack models LR0655, L55, and LR2055. Features 3.0 inch diameter by 3.75 inch wide Ultra-Poly 70D durometer polyurethane load wheels with sealed roller bearing assemblies, heat-treated alloy steel axles, and corrosive-resistant coating. Complete dual wheel assembly includes integrated mounting hardware and fasteners for direct replacement installation.
Compatibility: Fits pallet jacks made by Lift-Rite, model LR0655. SKU: GWK-LR0655-LW
Specifications
Material & Construction
| Axle Material | Hardened steel |
| Tread Hardness | 70 Shore D |
Part Numbers
| OEM Part Number | GWK-LR0655-LW |
| Model Compatibility | LR0655, L55 |
| Cross-Reference Part Numbers | Equivalent to Crown 310700-109-KIT |
Frequently Asked Questions
Q: What manual pallet jack models is GWK-LR0655-LW compatible with?
A: GWK-LR0655-LW load wheel kit is engineered for Lift-Rite and Big Joe models LR0655, L55, and LR2055. Cross-reference your jack model nameplate to confirm compatibility. The mounting pattern and axle bore are standardized across these three model designations.
Q: What is GWK-LR0655-LW equivalent to for cross-reference purposes?
A: GWK-LR0655-LW is equivalent to Crown part number 310700-109-KIT. If you have an original Crown kit, GWK-LR0655-LW is a direct functional replacement. Verify part numbers on your invoice or wheel assembly mounting bracket before ordering.
Q: What are the exact wheel specifications for GWK-LR0655-LW?
A: GWK-LR0655-LW includes dual load wheels measuring 3.0 inch diameter by 3.75 inch wide, manufactured from Ultra-Poly 70D durometer polyurethane. Each wheel features sealed roller bearing assemblies and is mounted on heat-treated hardened steel axles with corrosive-resistant coating. The 70 Shore D rating provides excellent floor grip and load capacity.
Q: Is installation of GWK-LR0655-LW a direct bolt-on replacement?
A: Yes. GWK-LR0655-LW is designed for direct replacement installation with no frame modification. The complete dual wheel assembly includes integrated mounting hardware and fasteners. Remove the original four mounting bolts from the chassis, slide the new assembly into position, and torque bolts to 40 foot-pounds. No bearing press or alignment tool is required.
Q: What load capacity does GWK-LR0655-LW support?
A: The sealed roller bearing assemblies and hardened steel axles in GWK-LR0655-LW support the maximum nameplate capacity of LR0655, L55, and LR2055 jacks, typically 5,500 pounds. The 3.75 inch wheel width distributes load evenly across the tread. Do not exceed the jack nameplate weight rating.
Q: How should GWK-LR0655-LW wheels be maintained and when should they be replaced?
A: Inspect wheels every 60 days for flat spots, cracks, and uneven wear. Clean polyurethane treads monthly with mild detergent and dry thoroughly. Spin wheels manually to check bearing smoothness; replace bearings if grinding noise occurs or play exceeds 1/16 inch. Replace wheels if tread diameter reduces by more than 1/2 inch, cracks exceed 1/4 inch, or flat spots exceed 1/8 inch depth. Apply light machine oil to bearing seals biannually.
