Product Description

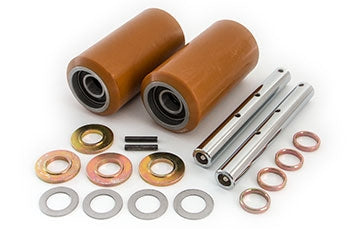

Yale GWK-MPE060E-LW Load Wheel Kit for electric pallet trucks, featuring 3.25-inch diameter by 4.50-inch tread width Durarun 95A polyurethane wheels, includes precision sealed ball bearings, hardened alloy steel axles, fasteners, and grease fittings. Engineered for Yale MPE060E (A896 Series) electric lift trucks. No cross-reference part numbers available.
Compatibility: Fits pallet jacks made by Yale, model MPE 060E. Alternate model: MPE060E. SKU: GWK-MPE060E-LW
Specifications
Material & Construction
| Wheel Material | Polyurethane, 95A durometer |
| Axle Material | Hardened carbon steel (SAE 1045) |
Part Numbers
| Manufacturer Part Number | GWK-MPE060E-LW |
| OEM Part Number | GWK-MPE060E-LW |
| Compatible Models | Yale MPE060E, A896 Series |
Frequently Asked Questions
Q: Is the GWK-MPE060E-LW compatible with Yale MPE060E model numbers other than A896 Series?
A: This kit is specifically engineered for Yale MPE060E A896 Series electric pallet jacks. Other production series or model variants may have different axle dimensions or bearing bore sizes. Before ordering, verify your jack serial number falls within the A896 Series range. Using this kit on incompatible series will cause installation failure or poor performance.
Q: What does the 3.25-inch diameter and 4.50-inch tread width specification mean?
A: The 3.25-inch diameter is the overall wheel size from center to outer edge. The 4.50-inch tread width is the thickness of the polyurethane contact surface. These dimensions are fixed for the MPE060E and cannot be altered. The Durarun 95A polyurethane compound provides high wear resistance and floor protection for extended warehouse cycles.
Q: Are the sealed ball bearings replaceable or must I replace the entire wheel assembly?
A: The precision sealed ball bearings are press-fitted into the wheel hub and are not field-replaceable. If a bearing fails or shows excessive play, the entire load wheel assembly must be replaced. Attempting to disassemble the hub or replace bearings separately will damage the wheel. Always replace the complete two-wheel kit to maintain equal rolling resistance.
Q: What is the load capacity rating of the GWK-MPE060E-LW kit?
A: This kit supports the full rated capacity of the Yale MPE060E A896 Series, which is 6,000 pounds. The 95A polyurethane compound paired with hardened carbon steel SAE 1045 axles is engineered for this load. Do not exceed 6,000 pounds; overloading causes permanent wheel deformation and axle bending.
Q: How often should I inspect and lubricate the sealed bearings?
A: Sealed bearings are maintenance-free and do not require additional lubrication. Inspect wheels every 500 operating hours for cracks, flat spots, or wobble. If wobble appears, the bearing may have failed and the wheel assembly must be replaced. Do not attempt to add grease to sealed bearing wheels; it will cause drag and bearing overheating.
Q: What is the installation procedure and is specialized equipment needed?
A: Installation requires a wheel puller or bearing press to remove the old wheels from the hardened SAE 1045 axles. Do not use a mallet; the axles are brittle and will snap. Press the new wheels straight onto the axles with the provided fasteners and snap rings. This task requires a mechanical press or specialized bearing puller. If you lack equipment, send the wheel kit to a service facility for installation.
