Product Description

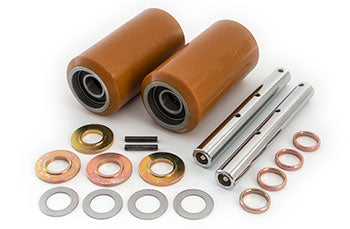

Load wheel assembly kit engineered for Yale MPW065E (A894) electric pallet jack featuring dual 3.25 x 4.50 inch polyurethane wheels with 95A or 97A durometer rating. Complete kit includes precision roller bearings, hardened steel axles, grease fittings, and mounting fasteners. Available in standard 95A Durarun formulation for medium-duty cycles or upgraded 97A compound for heavy-duty applications exceeding 4-6 hours daily operation. Cross-compatible with Crown Equipment part number 310700-207-KI
Compatibility: Fits pallet jacks made by Yale, model MPW065E. SKU: GWK-MPW065E-LW
Specifications
Application Parameters
| Service Classification | High-frequency duty cycle applications exceeding 240 minutes daily operation (97A variant) |
Part Numbers & Compatibility
| Manufacturer Part Number | GWK-MPW065E-LW |
| Alternative Part Number | GWK-MPW065E-LW-XL (97A durometer variant) |
| Cross-Reference Part Number | 310700-207-KIT (Crown Equipment compatible kit) |
| Compatible Equipment Model | Yale MPW065E (Model A894) Electric Pallet Jack |
Wheel Assembly Specifications
| Wheel Material Composition | Polyurethane load wheels, 95A durometer hardness () |
| Heavy-Duty Wheel Material | Polyurethane 97A durometer hardness for extended duty cycles exceeding 4-6 hours daily operation |
Frequently Asked Questions
Q: Is GWK-MPW065E-LW compatible with the Crown Equipment equivalent part number 310700-207-KIT?
A: Yes. GWK-MPW065E-LW is cross-compatible with Crown Equipment part number 310700-207-KIT for the Yale A894 platform. Both kits use identical 3.25 x 4.50-inch wheel dimensions, sealed roller bearings, and hardened steel axles. The GWK-MPW065E-LW is engineered to Yale OEM specifications. If GWK-MPW065E-LW is unavailable, the Crown part 310700-207-KIT can be substituted, though verify the axle bore diameter is 0.625 inches before ordering.
Q: What are the durometer options for GWK-MPW065E-LW and how do I choose between 95A and 97A?
A: GWK-MPW065E-LW is available in two formulations: standard 95A Durarun polyurethane for medium-duty cycles up to 4 hours daily, and upgraded 97A compound for heavy-duty applications exceeding 4-6 hours daily operation. The 95A variant lasts 16-20 months under typical warehouse conditions. The 97A (listed as GWK-MPW065E-LW-XL) extends wheel life to 24-28 months. Choose 95A for light-to-medium duty; select 97A or the XL variant for continuous or high-cycle operations.
Q: What is the rated load capacity and maintenance schedule for GWK-MPW065E-LW?
A: The wheel kit supports the Yale MPW065E full rated capacity of 5000 lbs at a 24-inch load center. Wheel dimensions are 3.25 x 4.50 inches. The kit includes grease fittings for manual lubrication. Grease the bearings every 250 operating hours or quarterly with NLGI Grade 2 lithium-based grease; apply 2-3 pumps per fitting. Sealed roller bearings provide additional protection. Replace wheels when tread depth drops below 0.20 inches or after 20-28 months of operation.
Q: How do I install GWK-MPW065E-LW and what is the procedure for greasing the grease fittings?
A: Installation: Use 0.625-inch socket, rubber mallet, 10-ton jack, and 6000-lbs-rated jack stands. Lift truck 12 inches. Remove cotter pin and axle nut. Tap the wheel assembly gently toward you with the mallet. Slide the assembly off the axle. Inspect the axle for pitting. Slide the new kit onto the axle with the bearing cartridge facing outward. Hand-tighten the nut, then torque to 40 ft-lbs. Install new cotter pin. To grease: attach a standard hydraulic grease gun with a female coupler to each grease fitting nipple. Pump grease until you see it purge from the bearing seal. Do not over-grease; excess pressure damages the seals.
Q: What failure symptoms indicate GWK-MPW065E-LW wheels or bearings need replacement?
A: Replace the wheel kit when you observe: squealing or grinding noises that worsen during loaded movement, visible cracking, chunks, or delamination in the polyurethane tread, flat-spotting or loss of round geometry, asymmetrical wear patterns on left versus right wheels, truck veering left or right without steering input, or resistance when manually spinning the wheels. Squealing after greasing typically indicates bearing wear requiring replacement. Any of these conditions warrant immediate kit replacement to prevent axle damage.
Q: Can I use the GWK-MPW065E-LW kit on a Yale A895 or A896 model if I have an adapter?
A: No. GWK-MPW065E-LW is engineered exclusively for the A894 Yale MPW065E platform. The A895 and A896 models use different axle bore diameters (0.50-inch versus 0.625-inch) and load ratings. Adapters do not exist for this application. Do not attempt to force-fit this kit onto other Yale or Hyster models. Always verify the truck model number and serial range before ordering. Using an incompatible wheel kit voids the warranty and creates a safety hazard due to axle misalignment.
