Product Description

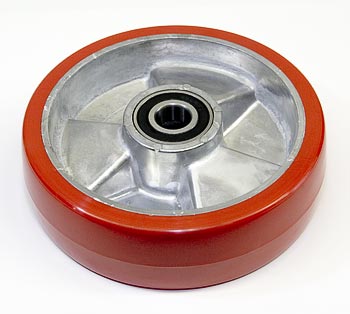

Pallet Mule AA-7.25x2 PMWB-HD steer wheel assembly featuring 7.25 inch diameter red ultra-polyurethane tread bonded to aluminum hub with integrated 20mm bearing. Compatible with AA5000 and AA5500 frame assemblies, superseding older 8 inch wheel configurations. Includes precision bearing assembly for steer wheel axle mounting with shoulder bolt retention hardware.
Compatibility: Fits pallet jacks made by Pallet Mule, model AA5500. SKU: PU AA-7.25X2 PMWB-HD
Specifications
Material & Construction
| Hub Material | Aluminum alloy construction |
Mechanical Specifications
| Mounting Configuration | Steer wheel axle mount with shoulder bolt retention (items AA-29 bolt, AA-29N lock nut, AA-64 bearing) |
| Design Generation | Newer 7 inch wheel design (replaces previous 8 inch steer wheel assemblies) |
Part Numbers & Compatibility
| Manufacturer Part Number | AA-7.25x2 PMWB-HD |
| Cross-Reference Part Numbers | Supersedes AA-8x2 PMWB-HD (older 8 inch steer wheel configuration) |
| Alternative Part Numbers | AA-7.25x2 PMWB-ST (nylon on poly hub variant), AA-7.25x2 (nylon variant) |
| Equipment Compatibility | Pallet Mule AA5000 and AA5500 frame assemblies |
| Application Position | Item 12 on frame assembly diagram |
| Associated Hardware | Requires AA-46 steer wheel axle, AA-29 shoulder bolt, AA-29N lock nut for installation |
| Frame Assembly Components | Works with AA-61 traverse, AA-28 snap ring, AA-30 thrust bearing in steer mechanism |
Frequently Asked Questions
Q: What is the wheel diameter and material composition of the PU AA-7.25X2 PMWB-HD?
A: The PU AA-7.25X2 PMWB-HD is a 7.25 inch diameter steer wheel assembly with ultra-polyurethane tread bonded to an aluminum hub. The tread width is 2.00 inches. This configuration represents an upgrade from older 8 inch wheel designs, offering improved maneuverability while maintaining load capacity.
Q: Which pallet jack models does the PU AA-7.25X2 PMWB-HD fit?
A: This steer wheel assembly is compatible with Pallet Mule AA5000 and AA5500 frame assemblies. It is a direct replacement for equipment originally equipped with the older AA-8x2 PMWB-HD configuration.
Q: What bearing specifications are included in this assembly?
A: The PU AA-7.25X2 PMWB-HD includes an integrated 20mm precision bearing assembly with shoulder bolt retention hardware for secure axle mounting. The bearing design provides smooth steer wheel rotation and extended service life under normal pallet jack operating conditions.
Q: What alternative part numbers or variants are available for this steer wheel?
A: The PU AA-7.25X2 PMWB-HD has two primary alternatives: the PU AA-7.25X2 PMWB-ST which features a nylon hub instead of aluminum, and the PU AA-7.25X2 which is a full nylon variant. All three fit the same equipment frame assemblies but offer different hub material options for specific operating environments.
Q: How does the 7.25 inch wheel diameter compare to older configurations?
A: The 7.25 inch diameter wheel replaces the superseded 8 inch configuration (AA-8x2 PMWB-HD). The smaller diameter reduces the overall ride height and improves maneuverability on material handling equipment while the ultra-polyurethane tread maintains durability and provides superior grip on standard warehouse floors.
