Product Description

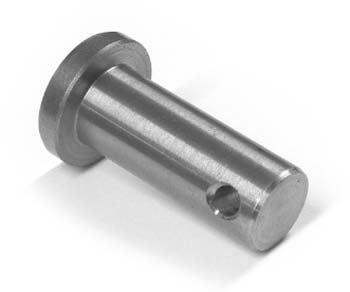

PIN
Specifications
Product Overview
| Part Number | 220017711 |
| Product Type | Shaft Pin / Dowel Pin |
Physical Specifications
| Material | Hardened Steel |
| Function | Mechanical linkage connector for handle, pump actuator, and height adjustment mechanisms |
| Fit Type | Precision fit (varies by application - slip fit, press fit, or taper) |
Compatibility
| Application | Manual Pallet Jack Linkage Assembly |
Frequently Asked Questions
Q: What are the diameter, length, and material specifications of pin 220017711?
A: The 220017711 is a shaft pin or dowel pin used in manual pallet jack assemblies. Material is typically hardened steel with a tolerance suited for tight fits. Verify the exact diameter and length in your manual, as pin sizes vary by jack model. Common diameters range from 0.250 inch to 0.5 inch depending on load-bearing application.
Q: Where is the pin 220017711 located on a manual pallet jack?
A: The 220017711 typically secures handle assemblies, pump actuator linkages, or height adjustment mechanisms on manual pallet jacks from Crown, Toyota, Raymond, Yale, and similar OEM brands. Consult your jack assembly diagram to identify the exact location and quantity of pins required for your model.
Q: What happens if the pin 220017711 breaks or becomes loose?
A: A broken or missing 220017711 pin results in immediate loss of mechanical linkage function. If the pin secures the pump lever, the jack will not operate. If it secures the handle assembly, the jack may become unstable or uncontrollable. Replace broken pins immediately to restore safe operation.
Q: Can the pin 220017711 be driven out and replaced without special tools?
A: The 220017711 pin is a precision-fit component. Confirm the exact fit type (slip fit, press fit, or taper pin) and required extraction method in your equipment manual. Some pins may require a hydraulic press or drift punch for safe removal and reinstallation. Improper removal can damage mounting holes and surrounding components.
