Product Description

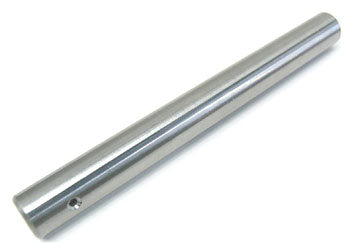

Prime Mover 301996-005 is a precision fork pivot pin engineered for cold storage electric lift truck applications. Manufactured from carbon steel with heat-treated construction for enhanced wear resistance and durability. The phosphate coating provides superior protection in low-temperature environments. Designed for Prime Mover PMX lift trucks with cold storage configurations. This pin supersedes previous 301996-00X series variants, offering improved reliability in sub-zero warehouse operations.
Specifications
Dimensional Specifications
| Retainer Groove Position | Groove location: 0.50 inch from one end |
| Chamfer Detail | Both ends beveled 0.05 × 45° |
Material & Construction
| Hardness Specification | Brinell 220 minimum (core), Rockwell C20 minimum (surface) |
Part Numbers
| OEM Part Number | 301996-005 |
| Manufacturer Part Number | PR 301996-005 |
| Cross-Reference Part Numbers | Supersedes: 301996-000, 301996-002, 301996-003, 301996-004 |
| Replaces | 301996-000, 301996-002, 301996-003, 301996-004 |
Frequently Asked Questions
Q: What is the PR 301996-005 fork pivot pin designed for?
A: The PR 301996-005 is an OEM wheel fork pivot pin specifically engineered for cold storage electric lift truck applications. It is manufactured from cold-finished carbon steel, heat treated for wear resistance, and phosphate coated to provide low-temperature corrosion protection in sub-zero environments.
Q: Which Prime Mover lift truck models use this fork pivot pin?
A: This pin is fully dimensioned for compatibility with Prime Mover PMX lift trucks equipped with cold storage adaptations. It supersedes all previous variants in the 301996-00X series, including part numbers 301996-000, 301996-002, 301996-003, and 301996-004.
Q: What is the retainer groove position on this pivot pin?
A: The retainer groove is located 0.50 inch from one end of the pin, with a chamfer detail applied for proper fit and retention in the fork assembly.
Q: What coating does this pivot pin have?
A: The PR 301996-005 features a phosphate coating specifically selected for low-temperature corrosion protection, making it suitable for sustained operation in cold storage facilities.
