Product Description

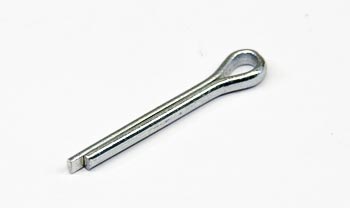

The RA 810-910 cotter pin is a direct replacement fastener engineered for secure linkage and pivot assembly in Raymond electric pallet trucks. Built from durable low carbon steel, this 3/32-inch diameter pin delivers reliable retainment in demanding material handling environments. Ideal for maintenance, repair, and assembly operations across Raymond series 8310, 8410, 8510, and 8610 electric pallet truck fleets.
Specifications
Application
| Compatible Equipment Models | Raymond electric pallet trucks, series 8310, 8410, 8510, 8610 |
Dimensions
| Diameter | 3/32 inch |
| Length | 1 inch |
Material & Construction
| Material Specification | Low carbon steel, SAE 1008/1010 |
| Steel Grade | SAE 1008/1010 |
| Finish/Coating | Plain, unfinished |
| Engineering Standard | ANSI B18.8.1 |
Part Numbers
| Part Number | RA 810-910 |
Performance Specifications
| Service Factor | 1.0 (for non-critical retainment applications) |
Frequently Asked Questions
Q: What are the physical dimensions of the RA 810-910 cotter pin?
A: The RA 810-910 is 3/32 inch in diameter and 1 inch in length, engineered to ANSI B18.8.1 form specifications. These dimensions ensure proper fit in linkage securement points across Raymond electric pallet truck and tow tractor assemblies.
Q: Which Raymond electric pallet truck models are compatible with the RA 810-910?
A: The RA 810-910 is suitable for Raymond electric pallet trucks and tow tractor series 8310, 8410, 8510, and 8610. Verify your specific equipment model and serial range before ordering to confirm compatibility.
Q: What material specification does the RA 810-910 meet?
A: The RA 810-910 is fabricated from SAE 1008/1010 low carbon steel with plain, unfinished finish. This material specification provides adequate strength for non-critical linkage retainment applications with a service factor of 1.0.
Q: Why is low carbon steel used in the RA 810-910 instead of high carbon steel?
A: SAE 1008/1010 low carbon steel offers ductility and ease of installation in linkage securement applications that do not require the extreme hardness of high carbon alternatives. The material balances strength with workability for pallet truck and tow tractor pivot points.
Q: What is the service factor rating of the RA 810-910?
A: The RA 810-910 carries a service factor of 1.0, designating it for non-critical retainment applications. This rating confirms suitability for linkage securement in electric pallet truck assemblies where dynamic loads are moderate and consistent.
