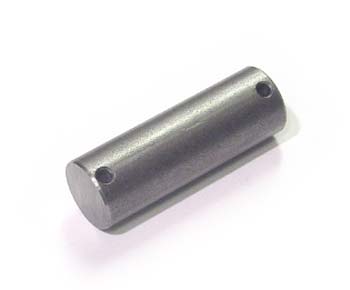

Eye Bolt Pin for Lift-Rite Manual Pallet Jack
LF PL-20227
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Eye bolt pin for Lift-Rite manual pallet jack chassis assemblies. This pin secures the eye bolt to bulkhead mounting points across a wide range of Lift-Rite models and configurations. Two pins are required per pallet jack unit, with split pin retention for secure fastening. Compatible with standard, low-profile, ultra-low-profile, and 4-way models across chassis widths from 20.5 to 33 inches.
Specifications
Assembly
| Related Components | Used with eye bolt assembly PL-20226 and bushing PL-20226A; retention split pin PL-20269 |
| Quantity Per Unit | 2 pins per pallet jack |
| Compatible Configurations | Standard, low-profile, ultra-low-profile, and 4-way models |
| Chassis Width Range | 20.5 to 33 inches |
Part Numbers
| Manufacturer Part Number | PL-20227 |
Frequently Asked Questions
Q: What equipment models use the LF PL-20227 eye bolt pin?
A: The LF PL-20227 eye bolt pin is compatible with Lift-Rite models including LCM50, LCU50 equipment. The pin works across standard, low-profile, ultra-low-profile, and 4-way configurations with chassis widths from 20.5 to 33 inches. Verify your exact model designation before ordering.
Q: How many LF PL-20227 pins are needed per pallet jack?
A: Two LF PL-20227 eye bolt pins are required per pallet jack unit. Each pin secures one eye bolt to a bulkhead mounting point on the chassis frame. Ensure you have both pins in stock when servicing any compatible model.
Q: What retention method secures the LF PL-20227 pin in place?
A: The LF PL-20227 eye bolt pin is retained using split pin PL-20269 (also called a cotter pin). Two split pins are needed per pallet jack (one per eye bolt pin assembly). The split pin passes through the hole at the end of the LF PL-20227 to lock it axially in the bulkhead.
Q: What is the relationship between LF PL-20227, PL-20226, and PL-20226A?
A: The LF PL-20227 is the pin that secures the eye bolt assembly to the pallet jack frame. The eye bolt itself is either LF PL-20226 (solid) or LF PL-20226A (bushed). On equipment such as LU50, use LF PL-20227 with LF PL-20226. On newer LCM50 and LCU50 models, use LF PL-20227 with LF PL-20226A bushing.
