Pin for Lift-Rite Manual Pallet Jack
LF PN-20204
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

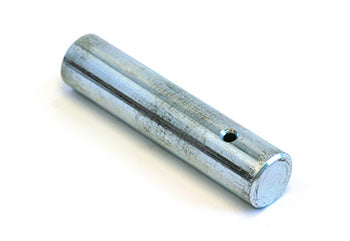

The LF PN-20204 bulkhead eye pin is a precision-machined replacement pin manufactured by Lift-Rite for manual pallet jacks. Machined from high-strength, zinc-plated steel with a 0.25 inch diameter and 1.5 inch length, this pin is a direct replacement for bulkhead and frame assemblies in Lift-Rite manual pallet jacks. Compatible with models including LF50, TitanSeries, LCUUF Universal 4-way, and Big Joe L-55, rated for 2500 kg (5500 lbs) load capacity. Zinc plating provides reliable corrosion resistance for warehouse and outdoor use.
Specifications
Dimensional
| Diameter | 0.25 inch |
| Length | 1.5 inch |
| Tolerance | Machined to ±0.005 inch tolerance |
Material & Construction
| Material Specification | High-strength steel, zinc-plated |
| Steel Grade | Conforms to SAE 1018 or equivalent for pin applications |
| Finish | Zinc-plated for corrosion resistance |
Application
| Rated Load | 2500 kg (5500 lbs) |
| Compatibility | Fits Lift-Rite and Big Joe manual pallet jacks: LF50, TitanSeries, LCUUF Universal 4-way, LCR55, LR655, LR0655, Big Joe L-55 |
Part Numbers
| Primary Part Number | LF PN-20204 |
| Manufacturer Part Number | PL-20204 |
| Cross-Reference Part Numbers | LFPN-20204, LRPN-20204, PL20204, 20204 |
| Replaces/Supersedes Part Numbers | PL-20204, 20204 |
| Equivalent/Interchange Part Numbers | LF PN20204, LFPL20204, LRPL20204 |
Frequently Asked Questions
Q: What equipment does the LF PN-20204 bulkhead eye pin fit?
A: The LF PN-20204 fits Lift-Rite manual pallet jacks including LF50, TitanSeries, LCUUF Universal 4-way, and Big Joe L-55 models. It is a direct replacement for bulkhead and frame assemblies rated for 2500 kg (5500 lbs) load capacity.
Q: What are the dimensions and material specifications for the LF PN-20204?
A: The LF PN-20204 is precision-machined from high-strength, zinc-plated steel with a 0.25 inch diameter and 1.5 inch length. The zinc plating provides corrosion resistance for warehouse and outdoor environments.
Q: What cross-reference part numbers are equivalent to the LF PN-20204?
A: The LF PN-20204 supersedes and is equivalent to PL-20204, LFPN-20204, LRPN-20204, PL20204, and 20204. When ordering replacements, verify the OEM part number on your equipment to confirm fitment.
Q: Is the LF PN-20204 suitable for outdoor or cold storage use?
A: Yes. The zinc-plated steel construction resists corrosion in wet, outdoor, and cold storage environments. The high-strength material maintains structural integrity under rated loads in all weather conditions.
Q: What is the expected lifespan of the LF PN-20204 pin?
A: Service life depends on usage frequency and environment. In standard warehouse conditions, this precision-machined pin typically performs reliably for several years. In heavy-use or corrosive environments, inspect annually for wear or corrosion.
