Product Description

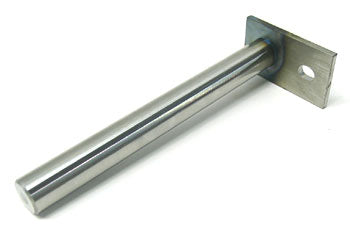

Prime Mover PR 301943-000 welded pivot bell crank pin for PMX Series electric lift trucks with 4500 lb capacity. Chassis component compatible with frame assemblies 0301-001 and 0301-002, serial numbers 31141001 through 36132000. Integrated pivot assembly pin used with pull rod 311027-046 in frame and chassis structure.
Specifications
Dimensional
| Installation Reference | Component 14 in chassis assembly diagram 0301-001 and 0301-002 |
Material
| Construction Method | Welded pin configuration for permanent chassis installation |
Part Numbers
| Manufacturer Part Number | 301943-000 |
| Full Part Designation | PR 301943-000 |
| Cross-Reference Part Numbers | Reference number 301943-000 used in chassis assembly 0301-001 and 0301-002 |
| Equipment Compatibility | Prime Mover PMX Series (4500 lb capacity models) |
| Chassis Serial Number Range | Compatible with serial numbers 31141001 through 32336000 (Frame 0301-001) and 32336001 through 36132000 (Frame 0301-002) |
Frequently Asked Questions
Q: What is the PR 301943-000 and what does it do?
A: The PR 301943-000 is a welded pivot bell crank pin used in Prime Mover PMX Series electric lift trucks. It functions as a critical pivot assembly pin in the frame and chassis structure for load handling.
Q: Which Prime Mover models use the PR 301943-000?
A: The PR 301943-000 is compatible with Prime Mover PMX Series electric lift trucks rated for 4500 lb capacity. It is used in frame assemblies 0301-001 and 0301-002.
Q: What serial number range is the PR 301943-000 designed for?
A: The PR 301943-000 is compatible with Prime Mover chassis serial numbers ranging from 31141001 through 36132000. Verify your lift truck serial number before ordering.
Q: How does the PR 301943-000 integrate with other chassis components?
A: The PR 301943-000 pivot bell crank pin is used in conjunction with pull rod 311027-046 as part of the integrated chassis assembly and frame structure.
