Pivot Plate Assembly for Crown RR 3000, RR 5000, RD 5000, RR 5200, RD 5200
CR 121786-001
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

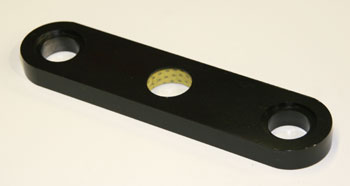

Crown pivot plate assembly (part number 121786-001) is a complete undercarriage pivot mechanism engineered for Crown RR 3000 Series electric reach trucks equipped with load wheels. This structural bearing interface component enables proper load wheel articulation and steering functionality. One assembly is required per side for correct operation. Factory-spec direct replacement part ensuring original equipment compatibility and durability in demanding material handling applications.
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | RR 3000, RR 5000, RD 5000, RR 5200, RD 5200 |
| Factory Part Number | 121786-001 |
| Manufacturer Part Number | CR 121786-001 |
| Alternate Part Number | CR 121786-S001 |
| Cross-Reference Part Numbers | 121786/001 |
| Compatible Equipment - RR Series | RR5200, RR5210-35, RR5210-40, RR5220-35, RR5220-45, RR5225-35 |
| Compatible Equipment - RD Series | RD5200, RD5220-30, RD5225-30 |
| Compatible Equipment - RM Series | RM6000, RM6025, RM6025-45, RMD6000, RMD6025 |
| Cross Reference Part Numbers | 121786/001 |
| Compatible Equipment Rr Series | RR5200, RR5210-35, RR5210-40, RR5220-35, RR5220-45, RR5225-35 |
| Compatible Equipment Rd Series | RD5200, RD5220-30, RD5225-30 |
| Compatible Equipment Rm Series | RM6000, RM6025, RM6025-45, RMD6000, RMD6025 |
Additional Specifications
| Service Classification | Electric reach truck undercarriage pivot mechanism |
| Equipment Type | Crown RR 3000 Series Reach Trucks |
| Material Composition | Steel with structural bearing interface |
| Quantity Required | One assembly per side (typically two per reach truck) |
Frequently Asked Questions
Q: What is the CR 121786-001 pivot plate assembly used for?
A: The CR 121786-001 is a complete pivot plate assembly for Crown electric reach trucks. It serves as the undercarriage pivot mechanism that enables load wheel articulation, allowing proper steering and load positioning.
Q: Which Crown electric reach truck models are compatible with the CR 121786-001?
A: This pivot plate is compatible with Crown RR 3000, RR 5000, RD 5000, RR 5200, and RD 5200 models.
Q: What material and durability properties does this pivot plate have?
A: The CR 121786-001 is constructed from steel with a structural bearing interface. This is a precision-engineered component designed for the demanding loads and repetitive articulation cycles of electric reach truck operations.
Q: How many pivot plate assemblies do I need to order?
A: You need one CR 121786-001 assembly per side of the undercarriage. Most reach trucks require two assemblies total—one for the left side and one for the right side.
Q: How do I confirm this is the correct pivot plate for my Crown reach truck?
A: Verify your equipment is from the RR 3000, RR 5000, RD 5000, RR 5200, or RD 5200 series. Confirm your model number matches the compatible list.
Q: What is the proper maintenance for this pivot plate assembly?
A: Inspect the bearing interface regularly for wear or corrosion. Keep the articulation mechanism clean and free of debris. Lubricate the bearing interface according to Crown maintenance schedules for your specific reach truck model.
