Product Description

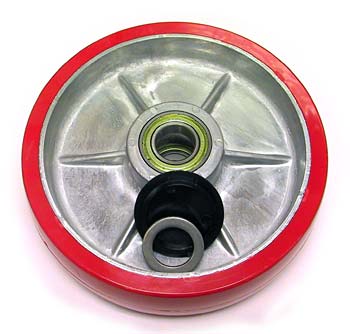

The Liftsplus.com PL 20236-B-A-HD Poly/Alum Steer Wheel Assembly is an OEM-grade replacement part designed for manual pallet jacks. Featuring a 3.00-inch diameter, 2.75-inch width, aluminum hub, and ultra-polyurethane tread, it incorporates sealed ball bearings for smooth operation. Suitable for pallet jacks rated up to 5000 lbs. Compatible with axles sized 20 mm.
Specifications
Material & Construction
| Tread Hardness | 85 Shore D |
| Finish | Natural aluminum with molded polyurethane |
Part Numbers
| OEM Part Number | PL 20236-B-A-HD |
| Manufacturer Part Number | PL 20236-B-A-HD |
Frequently Asked Questions
Q: What are the specifications of the PL 20236-B-A-HD steer wheel?
A: The PL 20236-B-A-HD has a 3.00 inch diameter and 2.75 inch width. It features an aluminum hub with ultra-polyurethane tread, sealed ball bearings, and is designed for 20 mm axles.
Q: What load capacity does the PL 20236-B-A-HD support?
A: The PL 20236-B-A-HD is suitable for pallet jacks rated up to 5000 lbs. Verify your equipment load rating matches this specification.
Q: What does the 85 Shore D tread hardness mean?
A: Shore D 85 indicates very high tread durability and wear resistance. This hardness level is designed for heavy-duty warehouse applications with maximum load capacity and extended service life.
Q: What material is the PL 20236-B-A-HD hub made from?
A: The hub is natural aluminum with molded ultra-polyurethane tread. Aluminum provides strength and light weight while ultra-polyurethane offers superior durability and floor protection in high-capacity applications.
Q: Is the PL 20236-B-A-HD compatible with my manual pallet jack?
A: The PL 20236-B-A-HD is designed for manual pallet jacks with 20 mm axles and sealed ball bearings. Confirm your jack load rating does not exceed 5000 lbs and that axle specifications match before ordering.
