Product Description

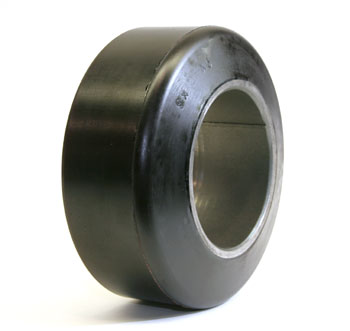

Poly Drive Tire, Tapered SW
Specifications: 9.000 inch diameter x 4.000 inch width (9.000" x 4.000" | 9 x 4 wheel | 9 x 4 | 228.60mm x 101.60mm)
Specifications
Wheel Specifications
| Outside Diameter (in) | 9.000 |
| Width (in) | 4.000 |
| Outside Diameter (mm) | 228.60 |
| Width (mm) | 101.60 |
| Drive Tire Profile | Tapered Side Wall |
| Material | Polyurethane |
Frequently Asked Questions
Q: What does the TSW designation mean on the SU 9 X 4 X 5-TSW-P tire?
A: TSW stands for tapered side wall. This profile gradually slopes inward from the outer edge, allowing the tire to fit into narrower spaces and improving maneuverability on tight warehouse aisles. The 9 inch diameter and 4 inch width provide a larger footprint than standard 8x4 tires, distributing load more evenly.
Q: Can I use the SU 9 X 4 X 5-TSW-P as a direct replacement for 8x4 tires?
A: No. The 9 inch diameter is larger and will raise your mast height slightly, which may affect load center and stability. The tapered side wall profile is designed for specific equipment designed for 9x4 wheels. Using it on 8x4 equipment may cause mast binding or uneven wear. Always match wheel size to the original equipment specification.
Q: What is the load capacity of the SU 9 X 4 X 5-TSW-P?
A: Typical load capacity is 3000 to 5000 lbs per wheel for 9x4 polyurethane tires, depending on hardness and equipment rating. The larger diameter distributes weight more effectively than 8x4 tires. Always verify your equipment nameplate for maximum load capacity and do not exceed it.
Q: What floors are best suited for the tapered side wall profile?
A: TSW tires work well on smooth concrete warehouse floors and are designed for precision steering and load turning. The tapered design reduces tipping risk on level surfaces and improves maneuverability. Avoid wet, sloped, or uneven floors. The polyurethane material requires dry conditions for optimal traction.
