Product Description

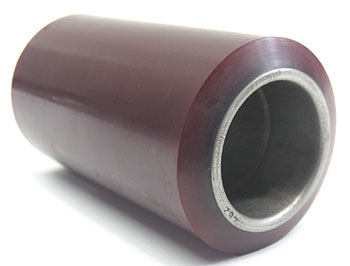

Replacement SU S2400 Poly Load Wheel, manufactured by Liftsplus.com for electric lift truck applications, features 95 Shore A hardness polyurethane tread with steel core, outside diameter 2.88 inches, tread width 2.44 inches, and equipped with sealed ball bearings. Supersedes SU 2400 and 2400-XL-A, and is cross-referenced as equivalent to CR 813014 and CR-77086-A for Crown WP 2300 and PE 3000 series lift trucks.
Specifications
Material & Construction
| Core Construction | Steel core with molded polyurethane tread |
Part Numbers
| Manufacturer Part Number | SU S2400 |
| OEM Part Number | SU 2400 |
| Reference Part Number | SU 2400-XL-A |
| Cross-Reference Part Numbers | Equivalent to CR 813014, compatible with Crown WP 2300, comparable to CR-77086-A load wheel assembly |
| Supersedes | Supersedes earlier SU 2400, compatible with 2400-XL-A |
| Equivalent/Interchange Part Numbers | CR 813014, CR-77086-A (Crown PE 3000, WP 2300 applications) |
Performance
| Polymer Compound | 95A |
Frequently Asked Questions
Q: Is the SU S2400 equivalent to Crown CR 813014 or CR-77086-A?
A: Yes. The SU S2400 is cross-referenced as equivalent to both CR 813014 and CR-77086-A load wheel assemblies. It is compatible with Crown WP 2300 and PE 3000 series lift trucks and supersedes the older SU 2400 and 2400-XL-A part numbers.
Q: What does 95 Shore A hardness mean for the SU S2400?
A: 95 Shore A indicates polyurethane tread hardness. This specification provides a balance between grip and durability for electric lift truck load wheels. The material resists flat-spotting under heavy loads while maintaining good contact with mast rails.
Q: What are the exact dimensions of the SU S2400 load wheel?
A: The SU S2400 has an outside diameter of 2.88 inches and a tread width of 2.44 inches. It features a steel core with sealed ball bearings for smooth rotation and extended service life in industrial environments.
Q: Can I mix SU 2400 and SU S2400 on the same truck?
A: No. Always replace wheels in complete sets. Mixing old SU 2400 wheels with new SU S2400 wheels creates height mismatches and mast misalignment. Install new wheels on all four load positions simultaneously for safe operation.
Q: What is the typical lifespan of the SU S2400 wheel?
A: Lifespan depends on usage intensity and load profiles. In moderate duty cycles, expect 2000 to 4000 operating hours. Sealed ball bearings reduce maintenance, but inspect weekly for wear. Replace when tread loss exceeds 25% or if the wheel does not rotate freely.
