Product Description

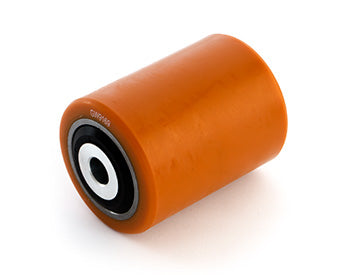

The GW 9169-A Poly Load Wheel 95A Assembly is a precision-engineered replacement part designed for electric lift trucks. Constructed with a solid polyurethane tread, this wheel offers exceptional durability and performance in demanding material handling applications.
Specifications: 3.350 inch diameter x 4.320 inch width (3.350" x 4.320" | 3.35 x 4.32 wheel | 3.35 x 4.32 | 85.09mm x 109.73mm) | Bearing ID: 17mm (0.669 inch bore | 17.000mm ID)
• Solid polyurethane tread with a 95A durometer for enhanced wear resistance
• Steel hub construction for superior strength and stability
• Ideal for high-load and high-frequency applications
This load wheel is compatible with various electric lift trucks, ensuring a reliable and efficient operation in your material handling tasks.
Specifications
Material & Construction
| Wheel Construction | Solid polyurethane tread bonded to steel hub |
Part Numbers
| Manufacturer Part Number | GW 9169-A |
| OEM Part Number | GW 9169-A |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.35 |
| Width Side to Side | 4.32 |
Frequently Asked Questions
Q: What bearing ID does the GW 9169-A have?
A: The GW 9169-A has a bearing ID of 17mm (0.669 inch bore). This 17mm bore is much smaller than the GW 9168-A-ASSY (30mm) and GW 9186 variants. Using a 17mm axle in the wrong truck or vice versa will cause binding or dangerous wheel slippage.
Q: Can I use the GW 9169-A as a replacement for my current wheel?
A: Yes, but only if your truck has a 17mm axle bore and accepts a 3.350 inch diameter by 4.320 inch width wheel. Check your existing wheel bearing ID by measuring the axle bore diameter. If your axle is 20mm, 30mm, or another size, the GW 9169-A will not fit and may damage the bearing or axle.
Q: Is the GW 9169-A a complete kit or do I need to buy bearings separately?
A: The GW 9169-A is the wheel only. You must transfer your existing 17mm axle and bearings from the old wheel or purchase them separately. The GW 9169 dual wheel kit includes the axle and fasteners if you need a complete solution.
Q: What is the load rating for the GW 9169-A?
A: Load capacity is determined by the truck model and axle assembly, not the wheel alone. The 17mm axle specification is typical for smaller electric pallet jacks rated 4000 to 6000 pounds total capacity. Consult your truck manual for the exact rated capacity before exceeding it.
Q: How do I replace the GW 9169-A wheel on my lift truck?
A: Remove the bolt or snap ring holding the old wheel to the 17mm axle. Slide the wheel off carefully to avoid losing bearings. Clean the axle. Press or slide the new GW 9169-A wheel onto the axle, ensuring the bearing ID aligns with the axle. Secure with the bolt or snap ring per your truck specifications.
