Product Description

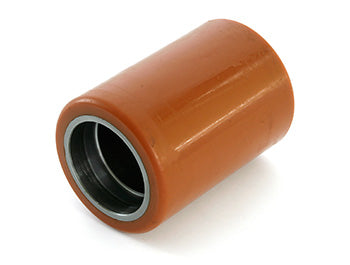

The GW 9168 Poly Load Wheel 95A is a high-performance replacement part designed for electric lift trucks and pallet jacks. Engineered with a durable polyurethane tread bonded to a robust steel core, this load wheel is ideal for demanding load handling applications.
Specifications: 3.250 inch diameter x 4.500 inch width (3.250" x 4.500" | 3.25 x 4.5 wheel | 3-1/4 x 4-1/2 | 82.55mm x 114.30mm)
• 95 Shore A polyurethane tread for enhanced durability
• Steel core for added strength and longevity
• Compatible with electric pallet jacks and lift trucks
This load wheel is interchangeable with alternate part numbers GW 9168-A and GW 9168-S, ensuring versatility and ease of replacement.
Specifications
Material & Construction
| Core Material | Steel |
| Tread Material | Polyurethane, 95A durometer |
Part Numbers
| Manufacturer Part Number | GW 9168 |
| Alternate Part Numbers | GW 9168-A, GW 9168-S |
| Cross-Reference Part Numbers | GW 9168-A, GW 9168-S |
| OEM Part Number | GW 9168 |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 4.5 |
Frequently Asked Questions
Q: What are the dimensions of the GW 9168 load wheel?
A: The GW 9168 measures 3.250 inches in diameter by 4.500 inches in width (3.25 x 4.5 wheel, or 82.55mm x 114.30mm in metric). This is a wide, narrow-diameter load wheel designed for heavy-duty pallet jacks and electric lift trucks that require stability and load distribution.
Q: What is the difference between the GW 9168, GW 9168-A, and GW 9168-S?
A: GW 9168, GW 9168-A, and GW 9168-S are cross-reference part numbers for the same 3.25 x 4.5 poly load wheel. All variants use a steel core and 95A polyurethane tread. Verify which part number matches your original equipment before ordering to ensure correct fitment and bearing bore diameter.
Q: Why does the GW 9168 have a steel core instead of a polymer core?
A: The steel core provides superior strength and rigidity for load wheels that must support heavy loads. Steel cores dissipate heat better during continuous operation and resist deformation under sustained pressure. Polymer cores are lighter but flex more; steel cores are used when durability and long service life are priorities.
Q: Is the GW 9168 a non-marking wheel?
A: The 95A polyurethane tread on the GW 9168 is formulated to minimize marking on indoor floors. Under normal warehouse conditions with typical load capacities, the wheel should not leave black residue. However, hard braking, excessive speed, or overloading may cause some marking. If zero-marking is required, confirm with the supplier that the tread composition meets your specific standard.
Q: What is the bearing bore ID for the GW 9168?
A: The search results do not specify the exact bearing bore diameter for the GW 9168. Consult the detailed product specifications or contact the manufacturer to confirm the bearing ID before installation. Using the wrong bearing size will cause excessive play, noise, and premature failure.
Q: How long does the GW 9168 wheel typically last in heavy-duty applications?
A: Under typical warehouse use at rated load capacity, the GW 9168 will perform reliably for 12-24 months. Heavy-duty applications with continuous operation or overloading will reduce this to 6-12 months. Inspect the wheel every 500 operating hours for tread wear, cracks, or bearing noise. Replace when you notice flat spots or excessive wear.
