Product Description

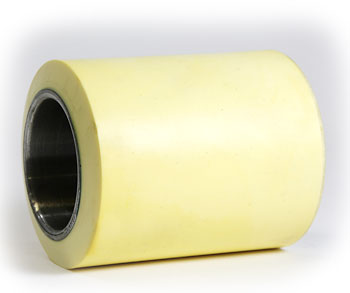

Raymond RA 632-071-XL polyurethane load wheel engineered for tandem-configuration pallet trucks. Built with 97A durometer XL compound for enhanced wear resistance, this wheel features a 3.25-inch outer diameter, 4.20-inch overall width, and 2.047-inch bore for direct axle fitment. Double-sealed 6205 2RS bearings protect against contamination. Direct replacement for earlier Raymond load wheel designs. Compatible with Raymond 8300, 8400, 8500, and 8600 series material handling equipment.
Specifications
Wheel Specifications
| Material Type | Polyurethane (XL compound) |
| Durometer Hardness | 97A Shore hardness |
| Outer Diameter | 3.25 inch |
| Overall Width | 4.20 inch |
| Bore | 2.047 inch |
| Tread Profile | Smooth surface finish |
Bearing Specifications
| Bearing Type | 6205 2RS sealed ball bearing (BS 6205 2RS double sealed radial deep groove) |
| Retention Method | Spiral pin RA 810-762 |
| Lubrication Point | Grease fitting RA 841-111 |
Part Numbers
| Part Number | RA 632-071-XL |
| Cross-Reference Part Numbers | RA632-071-XL, RA632071XL (alternate formats). Replaces RA 632-071; supersedes earlier models of Raymond load wheels. |
| Compatible Equipment Models | Raymond 8300, 8400, 8500, 8600 Series Pallet Trucks |
Frequently Asked Questions
Q: What does the XL compound designation mean on the RA 632-071-XL?
A: The XL designation indicates a 97A durometer polyurethane formulation. This higher durometer provides increased wear resistance and durability compared to standard compounds, extending wheel lifespan in demanding applications.
Q: Which Raymond pallet truck models are compatible with the RA 632-071-XL?
A: The RA 632-071-XL is compatible with Raymond 8300, 8400, 8500, and 8600 series pallet trucks. The extended compatibility to the 8600 series represents an upgrade over earlier wheel designs.
Q: What are the physical dimensions of the RA 632-071-XL?
A: The wheel has a 3.25-inch outer diameter, 4.20-inch overall width, and 2.047-inch bore for direct axle fitment on compatible Raymond equipment.
Q: What type of bearings does the RA 632-071-XL use?
A: The wheel is equipped with 6205 2RS sealed ball bearings. The 2RS designation indicates rubber seals on both sides, providing protection against contamination and extending bearing service life.
Q: What does the RA 632-071-XL replace?
A: The RA 632-071-XL replaces the RA 632-071 and supersedes earlier models of Raymond load wheels with improved 97A durometer hardness and enhanced bearing design.
Q: What lubrication and retention methods are used on the RA 632-071-XL?
A: The wheel uses a spiral pin (RA 810-762) for retention and includes a grease fitting (RA 841-111) for maintenance lubrication of the sealed bearings.
Q: Are there alternate part number formats for the RA 632-071-XL?
A: Alternate formats include RA632-071-XL and RA632071XL. Use these when cross-referencing inventory systems or consulting compatibility charts.
Q: What configuration is the RA 632-071-XL designed for?
A: The RA 632-071-XL is a tandem load wheel designed to work in pairs on Raymond pallet truck axles for balanced weight distribution and smooth operation.
