Product Description

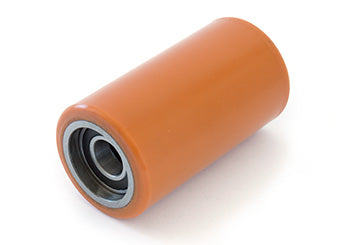

The GW 2400-A-DS tandem poly load wheel assembly is designed for optimal performance in electric lift truck and pallet jack applications. Constructed from durable 95A Durarun polyurethane, this wheel assembly includes four precision bearings for enhanced stability and longevity.
Specifications: 3.250 inch diameter x 6.000 inch width (3.250" x 6.000" | 3.25 x 6 wheel | 3-1/4 x 6 | 82.55mm x 152.40mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Made from high-quality 95A Durarun polyurethane for durability
• Includes four precision bearings for smooth operation
• Engineered specifically for electric pallet trucks and compatible industrial equipment
This wheel assembly is a reliable choice for enhancing the performance of electric lift trucks and pallet jacks, ensuring efficient operation in various industrial settings.
Specifications
Part Numbers
| Cross-Reference Part Numbers | GW2400-A, GP 2400-A, GP2400-A |
| Manufacturer Part Number | GW 2400-A-DS |
| OEM Part Number | GW 2400-A-DS |
| Equivalent Part Numbers | GW2400-A, GP2400-A |
Wheel Dimensions
| Outside Diameter | 3.25 |
| Width Side to Side | 6 |
Frequently Asked Questions
Q: What does the DS suffix mean on the GW 2400-A-DS, and how does it differ from GW 2400-A?
A: DS typically indicates a double-seal or enhanced seal configuration on the bearings, providing better protection against dirt and moisture contamination. The GW 2400-A-DS is otherwise identical to GW 2400-A in size (3.250 x 6.000 inch), material (95A Durarun poly), and bearing ID (25mm). Use DS variants in dusty or wet environments.
Q: Are the cross-reference part numbers GW2400-A, GP 2400-A, and GP2400-A all interchangeable with GW 2400-A-DS?
A: Yes, GW2400-A, GP 2400-A, and GP2400-A are interchangeable with GW 2400-A-DS. All are 95A Durarun polyurethane tandem wheels with 3.250 x 6.000 inch dimensions and 25mm bearing IDs. The DS enhanced seal is preferred for harsh environments but all variants fit the same mounting.
Q: What is Durarun polyurethane, and is it better than standard 95A poly?
A: Durarun is a premium 95A polyurethane formulation engineered for extended wear resistance and lower heat generation during high-speed or heavy-load operation. Durarun wheels resist chunking and cracking better than standard 95A and provide smoother, quieter operation. They cost more but last significantly longer on high-duty jacks.
Q: Does the GW 2400-A-DS wheel have four precision bearings, and are they serviceable?
A: Yes, the GW 2400-A-DS includes four precision sealed bearings (two per wheel in the tandem pair) with enhanced seals to block contaminants. The seals are not serviceable; if a bearing fails or squeaks, replace the entire wheel assembly. Enhanced seals extend bearing life but do not make them repairable.
Q: When should I choose GW 2400-A-DS over standard GW 2400-A?
A: Choose GW 2400-A-DS if your warehouse is wet, dusty, or exposed to road salt or harsh chemicals. The double seals prevent moisture and debris from entering the bearing cavities, reducing squeak and extending bearing life. For dry, clean warehouse floors, standard GW 2400-A is sufficient.
Q: What is the maximum load capacity for the GW 2400-A-DS wheel?
A: Load capacity is determined by your jack model and the total number of wheels, not the wheel alone. The GW 2400-A-DS is rated for standard and high-duty electric jacks up to 6000 lbs total capacity. Never exceed the load rating on your jack nameplate. Do not attempt to use this wheel on heavy industrial equipment beyond its rated capacity.
