Product Description

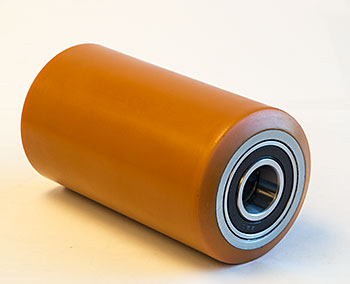

The Poly Load Wheel Assembly 95A is specifically designed for electric lift trucks, providing exceptional performance and durability in warehouse environments. Manufactured by Liftsplus.com, this wheel assembly is built with high-quality 95A hardness polyurethane to withstand heavy loads and frequent use.
Specifications: 3.250 inch diameter x 5.940 inch width (3.250" x 5.940" | 3.25 x 5.94 wheel | 3-1/4 x 5.94 | 82.55mm x 150.88mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Constructed with durable 95A hardness polyurethane
• Ideal for electric pallet trucks and lift truck models
• Cross-referenced as GW629-A, GP 629-A, and GP629-A
This load wheel assembly is compatible with a variety of electric pallet trucks and lift truck models, ensuring reliable operation in demanding warehouse settings.
Specifications
Part Numbers
| Manufacturer Part Number | GW 629-A-DS |
| Cross-Reference Part Numbers | GW629-A, GP 629-A, GP629-A |
| Equivalent Part Numbers | 95A Poly Load Wheel Assembly |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 5.94 |
Frequently Asked Questions
Q: What does the -DS suffix mean and how does GW 629-A-DS differ from GW 629-A?
A: The -DS designation indicates a dual-specification or variant build. GW 629-A-DS maintains the same 3.250 x 5.940 inch dimensions and 95A polyurethane hardness as GW 629-A. The width is 5.940 inch versus 5.938 inch, a nominal 0.002 inch difference that does not affect fitment. Cross-reference part numbers are GW629-A, GP 629-A, and GP629-A.
Q: Can I substitute GW 629-A-DS for the standard GW 629-A on my lift truck?
A: Yes, GW 629-A-DS is a direct replacement for GW 629-A. Both have a 25mm bearing bore and use the same mounting hardware. The 0.002 inch width variance is negligible for pallet jack applications. Verify your current wheel bore diameter matches 25.000mm before installation.
Q: What is the maximum load capacity and intended environment for the GW 629-A-DS?
A: The GW 629-A-DS is rated for electric lift truck warehouse applications with standard industrial flooring. The 95A durometer polyurethane provides mid-range hardness for balanced load carry and floor grip. Do not use on damaged or rough concrete. Exceed your truck manufacturer load limits and wheel failure risk increases. Check your equipment documentation for maximum safe load per wheel.
Q: How often should I inspect and maintain the GW 629-A-DS wheel assembly?
A: Perform visual inspection before each shift. Look for flat spots, tears, or hardened polyurethane. Monthly, clean debris from the tread and spin each wheel to confirm free rotation. If the wheel sticks, makes noise, or shows uneven wear, replace immediately. Typical service life is 18-36 months under normal warehouse use. Document replacement dates to track wear patterns.
