Product Description

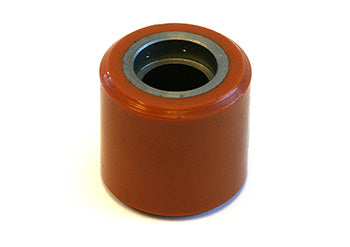

The GW 685-A Poly Load Wheel Assembly is designed for use with electric pallet trucks and lift trucks, providing durability and efficiency in material handling applications. Made from high-quality Shore A 95A Durarun compound, this wheel assembly ensures optimal performance under heavy loads.
Specifications: 2.500 inch diameter x 2.375 inch width (2.500" x 2.375" | 2.5 x 2.38 wheel | 2-1/2 x 2.375 | 63.50mm x 60.32mm)
• Constructed from 300 Series red polyurethane for enhanced wear resistance
• Tread width of 4.25 inches for stability and support
• Shoulder bearing type for smooth operation
This wheel assembly is compatible with various electric pallet trucks and lift trucks, making it a versatile choice for your material handling needs.
Specifications
Material
| Wheel Compound | 302 Series Polyurethane |
Part Numbers
| Cross-Reference Part Numbers | GW685-A, GP 685-A, GW685A, GP 685A, 685A |
| Manufacturer Part Number | GW 685 |
| OEM Part Number | GW 685-A |
| Equivalent Part Numbers | GP 685-A, 685A |
Wheel Dimensions
| Material | |
| Outside Diameter | 2.5 |
| Width Side to Side | 2.375 |
Frequently Asked Questions
Q: What are the GW 685 load wheel specifications?
A: The GW 685 is a 2.5 inch diameter by 2.375 inch width poly load wheel (2.500 x 2.375 inches or 63.50 x 60.32 millimeters). It features a 0.500 inch bearing bore, 300 Series red polyurethane construction with a 95A Shore A durometer rating, and is built from 302 Series polyurethane compound for enhanced wear resistance.
Q: Which electric pallet trucks and lift trucks does the GW 685 fit?
A: The GW 685 load wheel assembly fits electric pallet trucks and lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, and Linde. Cross-reference part numbers include GW685-A, GP 685-A, GW685A, and 685A. Verify bearing bore diameter and mounting orientation match your equipment.
Q: How do you install the GW 685 load wheel assembly?
A: Remove the existing load wheel by unbolting or pressing it off the axle. Press or bolt the GW 685 onto the mast wheel axle, ensuring the 0.500 inch bearing bore sits flush and centered. Reinstall any retaining washers or clips, then verify smooth rotation and proper alignment before operating the truck.
Q: Why is the 302 Series polyurethane compound better than standard wheels?
A: The 302 Series polyurethane offers superior wear resistance and load-bearing durability compared to standard compounds. The GW 685 maintains performance under heavy loads in indoor and warehouse environments, resists hardening from thermal cycling, and reduces replacement frequency in high-utilization material handling operations.
Q: How often should the GW 685 load wheel be maintained or replaced?
A: Inspect the GW 685 quarterly for flat spots, chunking, cracking, or uneven wear. Replace the wheel if tread is worn below 1/4 inch or if damage is visible. In continuous daily use, load wheels typically require replacement every 2 to 4 years. Keep the bearing bore and axle clean and lubricated per your truck manufacturer guidelines.
