Product Description

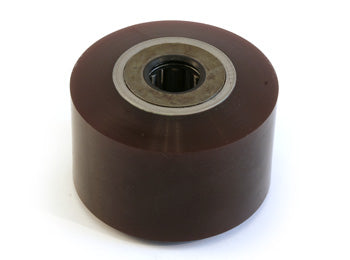

Poly Load Wheel Assembly 95A for electric pallet trucks. Features polyurethane tread with Shore A hardness of 95A, steel core construction, sealed bearing bore diameter of 2.047 inches, designed for long runs, heavy loads, and demanding warehouse environments. Suitable for replacement applications in select electric lift truck models.
Specifications
Material & Construction
| Wheel Core Material | Steel (integral core) |
Part Numbers
| Manufacturer Part Number | SU S2352-A |
| OEM Part Number | SU S2352-A |
Frequently Asked Questions
Q: What is the bearing bore diameter of the SU S2352-A?
A: The SU S2352-A has a sealed bearing bore diameter of 2.047 inches. Verify this measurement against your axle size before ordering. Using a wheel with incorrect bore diameter will cause binding, misalignment, or premature bearing failure.
Q: Does the SU S2352-A work on all electric pallet truck models?
A: The SU S2352-A is designed for select electric lift truck models. Compatibility depends on axle diameter (2.047 inch bore), load wheel location, and frame design. Always consult your truck manual or contact the manufacturer to confirm the wheel is approved for your specific model before installation.
Q: What load capacity should I expect from the SU S2352-A?
A: Load capacity depends on the truck model and total wheel count. The SU S2352-A is designed for heavy-duty applications. Do not exceed the truck manufacturer rated load capacity. The wheel itself does not fail at a specific weight; the truck frame and lifting mechanism have the rated limits. Overloading voids warranty and risks equipment failure.
Q: Can I replace just one wheel or do I need to replace all wheels together?
A: Replace wheels in pairs (front or rear) to maintain even weight distribution and smooth operation. Mixing worn and new wheels creates uneven loading and can cause the truck to pull to one side. If only one wheel is damaged, order two SU S2352-A wheels. Replacing all four wheels at once is ideal but not always necessary if others have acceptable tread.
Q: Are the bearings sealed on the SU S2352-A, and do they require lubrication?
A: Yes, the SU S2352-A features sealed bearing bores, which means the bearings are pre-sealed and do not require field lubrication. Do not add grease or oil to sealed bearings, as this can degrade seals and cause bearing failure. If the wheel spins with difficulty or makes noise, the bearing may be damaged and the entire wheel assembly should be replaced.
Q: What is the maintenance schedule for the SU S2352-A?
A: Inspect the wheel weekly for visible cracks, flat spots, or foreign debris. Clean the polyurethane tread periodically to remove oils or residues that reduce grip. Spin the wheel by hand to verify smooth rotation. Check the axle nut or bolt monthly to ensure it remains tight. No lubrication is needed due to sealed bearings. Replace the wheel if tread depth is visibly worn or if it does not spin freely.
