Product Description

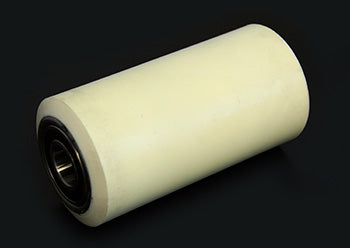

The GW 9141-XL-A is a high-performance polyurethane load wheel assembly designed for electric pallet jacks and lift trucks. With a robust 97A Shore hardness rating, this wheel provides exceptional durability and support for ground contact applications.
Specifications: 3.250 inch diameter x 6.500 inch width (3.250" x 6.500" | 3.25 x 6.5 wheel | 3-1/4 x 6-1/2 | 82.55mm x 165.10mm) | Bearing ID: 25mm (0.984 inch bore | 25.000mm ID)
• Constructed from high-quality polyurethane for long-lasting performance
• 97A Shore hardness rating ensures superior wear resistance
• XL compound construction enhances load-bearing capabilities
This load wheel assembly is ideal for use in demanding environments, ensuring reliable performance for your material handling equipment.
Specifications
Material & Construction
| Wheel Material | Polyurethane XL compound |
| Durometer Hardness | 97A Shore hardness rating |
Part Numbers & Compatibility
| Manufacturer Part Number | GW 9141-XL-A |
Wheel Dimensions
| Material | |
| Outside Diameter | 3.25 |
| Width Side to Side | 6.5 |
Frequently Asked Questions
Q: Is the GW 9141-XL-A a complete wheel assembly, and what does it include?
A: Yes. The GW 9141-XL-A is a finished wheel assembly. It includes the 3.250 x 6.500 inch polyurethane tire bonded to a steel core, with bearings pre-installed in a 25mm bore (0.984 inch). It is ready to bolt onto a compatible 25mm axle. Do not confuse this with the tire-only GW 9141-XL.
Q: What electric pallet jack and lift truck models use the GW 9141-XL-A?
A: The GW 9141-XL-A fits selected electric pallet trucks and lift trucks that originally came equipped with a 3.250 x 6.500 inch wheel assembly with a 25mm bearing bore. Common OEM applications include various 24V and 36V electric pallet jacks. Always cross-reference your equipment serial number and OEM part tag before ordering. If unsure, measure your current wheel diameter and axle bore.
Q: Can I install the GW 9141-XL-A myself, or do I need a technician?
A: Installation is plug-and-play if your axle bore is 25mm. Remove the axle pin or fastener, slide off the old wheel, and slide the GW 9141-XL-A onto the axle. Secure with the original pin or bolt. Ensure the wheel spins freely and does not rub. You will need a jack to lift the truck safely and basic hand tools. If the axle bore is not 25mm or the axle is damaged, the wheel will not fit and you must repair the axle first.
Q: What load capacity does the GW 9141-XL-A support?
A: Load capacity depends on the entire jack assembly (axle, frame, bearings, battery power) and is not determined by the wheel alone. The 97A durometer polyurethane and steel core are designed for sustained heavy-duty use on electric trucks. Never exceed your truck manufacturers rated load capacity. Overloading causes premature bearing wear, frame stress, and possible wheel failure.
Q: How do I maintain the bearings on the GW 9141-XL-A, and are they sealed?
A: The GW 9141-XL-A comes with pre-installed bearings. Most industrial wheel bearings are sealed roller or ball bearings and require no lubrication during normal service. Do not attempt to grease them unless your OEM documentation specifies grease points. If a wheel becomes noisy, wobbles, or does not spin freely after installation, the bearing may be damaged. Replace the entire assembly rather than trying to repair individual bearings.
