Product Description

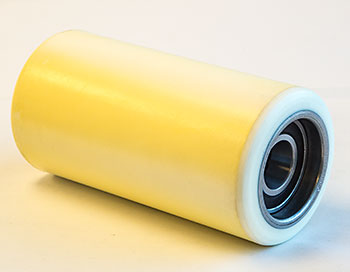

Hyster HY 2039299-XL-A Poly Load Wheel Assembly 97A features a high-wear, oil-resistant polyurethane tread with 97A Shore hardness, 3.25 inch OD, 2.875 inch width, and 17 mm bore. This assembly replaces HY 2039299-XL and is precision-engineered for select Hyster electric lift truck models.
Specifications
Dimensions & Physical Specifications
| Outer Diameter | 3.25 inch |
| Width | 2.875 inch |
| Bore | 17 mm |
Material & Composition
| Tread Material | High-wear, oil-resistant polyurethane |
| Shore Hardness | 97A |
| Steel Specification | SAE 1045 hub core |
| Finish | Machined steel core with polished finish |
Part Numbers
| Part Number | HY 2039299-XL-A |
| Manufacturer Part Number | 2039299-XL-A |
| Cross-Reference Part Numbers | Replaces HY 2039299-XL, supersedes 2039299XL, equivalent to Hyster 2039299XL-A |
| Application | Select Hyster electric lift truck models including B60Z, B80Z |
Frequently Asked Questions
Q: What are the specifications of the HY 2039299-XL-A load wheel assembly?
A: The HY 2039299-XL-A features a 3.25 inch outer diameter, 2.875 inch width, and 17 mm bore. The hub core is SAE 1045 steel with a machined steel finish. Shore hardness is rated at 97A for the polyurethane tread compound.
Q: How does the HY 2039299-XL-A compare to the HY 2039299-XL?
A: The HY 2039299-XL-A is the updated replacement for the HY 2039299-XL. It features improved hub construction with SAE 1045 steel core, maintains the same 97A durometer polyurethane tread, and delivers enhanced durability in electric lift truck applications.
Q: What material composition makes this load wheel oil-resistant?
A: The HY 2039299-XL-A uses a high-wear, oil-resistant polyurethane tread bonded to a machined SAE 1045 steel hub core. This composition resists degradation from hydraulic fluid contact and maintains tread integrity in industrial equipment environments.
Q: What Hyster models are compatible with the HY 2039299-XL-A?
A: The HY 2039299-XL-A is precision-engineered for Hyster electric lift truck models including B60Z and B80Z. Verify your specific equipment model, serial range, and wheel mounting configuration before ordering to ensure correct fitment.
Q: What cross-reference part numbers apply to the HY 2039299-XL-A?
A: The HY 2039299-XL-A replaces HY 2039299-XL and supersedes 2039299XL. It is equivalent to Hyster 2039299XL-A. Use the current part number HY 2039299-XL-A when ordering to ensure you receive the latest assembly revision.
Q: Is the 97A Shore hardness appropriate for my application?
A: The 97A Shore hardness provides high-wear resistance and durability for industrial warehouse, loading dock, and electric lift truck applications. This hardness rating balances traction and longevity in typical indoor material handling environments.
