Load Wheel Assembly for Raymond Electric Series 8300, 8400, and 8500
RA 632-076-XL-A
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

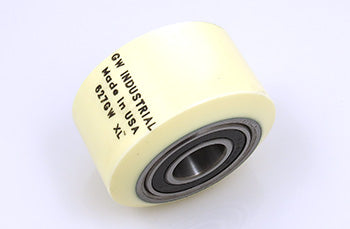

Raymond RA 632-076-XL-A is a load wheel assembly for Raymond lift truck models 8300, 8400, and 8500. Made with 97A polyurethane on cast iron, this replacement wheel is designed for durability in demanding warehouse environments.
Specifications
Material & Construction
| Material | 97A Polyurethane on Cast Iron |
| Finish/Construction | Machined cast iron core with bonded polyurethane tread |
| Durometer | 97A (high durometer polyurethane for durability and load capacity) |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 8300, 8400, 8500 |
| Primary Part Number | RA 632-076-XL-A |
| Cross-Reference Part Numbers | RA 632-076-XL, 632-076-XL, 632076XLA, 632-076, 632076, 632-076-A, 1154009, NA13054 |
| Compatible Equipment Series | Raymond Electric Series 8300, 8400, 8500 |
| Intended Application | High-capacity load wheel for electric lift trucks and pallet jacks |
Wheel Dimensions
| Outside Diameter | 3.25 in |
| Width | 2 in |
| Dimensions | 3.25" OD x 2" tread width |
Additional Specifications
| Tread Hardness | 97A Shore durometer |
Frequently Asked Questions
Q: What models is the RA 632-076-XL-A compatible with?
A: The RA 632-076-XL-A is compatible with Raymond lift truck models 8300, 8400, and 8500. Verify your truck model and original part number before ordering.
Q: What materials are used in the construction of the RA 632-076-XL-A?
A: The RA 632-076-XL-A is made with 97A polyurethane on cast iron. This combination provides durability, resistance to corrosion, and extended service life in demanding applications.
Q: What are the cross-reference part numbers for the RA 632-076-XL-A?
A: Equivalent and cross-reference numbers include RA 632-076-XL, 632-076-XL, 632076XLA, 632-076, 632076, 632-076-A, 1154009, and NA13054. These appear across different inventory systems and documentation; they all reference the same assembly.
Q: How does the 97A polyurethane contribute to the wheel's performance?
A: The 97A polyurethane is harder and more abrasion-resistant than standard alternatives, helping extend tread life in demanding environments. It also provides reliable traction and support.
Q: What should I consider when replacing the RA 632-076-XL-A?
A: When replacing the RA 632-076-XL-A, ensure compatibility with your Raymond lift truck model. Verify the original part number and check for any special requirements based on your operational environment.
