Product Description

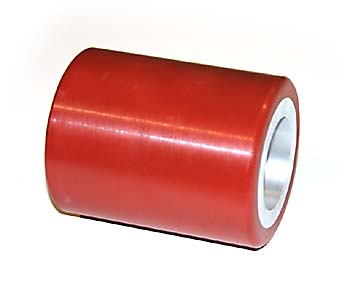

The GW 114 Poly Load Wheel Assembly is designed for high-performance use in manual pallet jacks. This durable wheel assembly features a robust construction that ensures reliability and efficiency in material handling.
Specifications: 3.000 inch diameter x 3.700 inch width (3.000" x 3.700" | 3 x 3.7 wheel | 3 x 3.7 | 76.20mm x 93.98mm) | Bearing ID: 0.75in (19.05mm inch bore | 0.7500in ID)
• Made from high-impact polyurethane tread for enhanced durability
• Reinforced nylon core for added strength and stability
• Sealed deep groove ball bearing for smooth operation
This load wheel assembly is compatible with manual pallet jacks rated to support up to 1100 lbs per wheel, making it an ideal choice for heavy-duty applications.
Specifications
Material & Construction
| Wheel Material | High-impact polyurethane tread, chemically bonded to reinforced nylon core |
| Bearing Material | Chrome steel balls and raceways, sealed for life |
| Tread Hardness | 92 ±2 Shore A |
Part Numbers & Compatibility
| OEM Part Number | GW 114 |
Wheel Dimensions
| Outside Diameter | 3 |
| Width Side to Side | 3.7 |
Frequently Asked Questions
Q: What is the bearing bore size on the GW 114?
A: The GW 114 has a 0.75 inch (19.05mm) bearing bore ID. This is larger than the GW 113 17mm bore. Always measure your current wheel bore before ordering to ensure compatibility.
Q: How does the GW 114 compare to the GW 113?
A: Both are 3 inch diameter wheels, but the GW 114 is 3.7 inches wide while the GW 113 is 3.75 inches wide. More importantly, the GW 114 has a 19mm bearing bore versus the GW 113 is 17mm. The GW 114 uses 92 Shore A hardness polyurethane over a nylon core with chrome steel sealed bearings.
Q: What is the tread hardness specification for the GW 114?
A: The GW 114 tread hardness is 92 ±2 Shore A. This is a lower durometer (softer) than the GW 113 75 Shore D, making the GW 114 suitable for smoother floor applications where traction and floor preservation are priorities.
Q: Are the bearings in the GW 114 sealed for life?
A: Yes. The GW 114 contains chrome steel ball and raceways sealed for life. No periodic lubrication is required or recommended. The sealed design prevents contaminant entry in dusty warehouse environments.
Q: Can I mix GW 114 wheels with other wheel sizes on the same pallet jack?
A: No. Always replace wheels in matched sets or full sets for even load distribution and safe operation. Mixing different wheel diameters or widths can cause tilting, uneven wear, and safety hazards. Replace all four wheels together when any one is damaged.
