Product Description

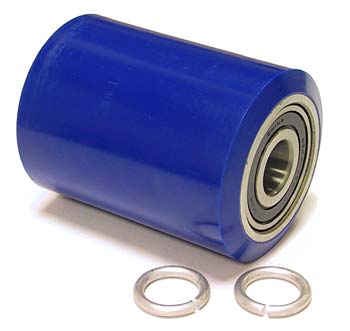

The GW 115 Poly Load Wheel Assembly is designed for optimal performance in manual pallet jacks. Featuring precision-sealed bearings and a durable polyurethane tread over a robust steel or cast iron hub, this wheel assembly ensures smooth operation and reliable load distribution.
Specifications: 2.750 inch diameter x 3.750 inch width (2.750" x 3.750" | 2.75 x 3.75 wheel | 2-3/4 x 3-3/4 | 69.85mm x 95.25mm) | Bearing ID: 0.75in (19.05mm inch bore | 0.7500in ID)
• Precision-sealed bearings for enhanced durability
• Polyurethane tread minimizes floor marking
• Compatible with standard pallet jack forks
Ideal for warehouse and material handling applications, the GW 115 ensures efficient load management and smooth maneuverability.
Specifications
Material & Construction
| Wheel Material Specification | Polyurethane tread bonded over cast iron or steel hub |
Part Numbers & Compatibility
| Manufacturer Part Number | GW 115 |
Performance
| Continuous Duty Cycle | Rated for manual pallet jack applications up to 200 cycles per 8 hours |
Wheel Dimensions
| Outside Diameter | 2.75 |
| Width Side to Side | 3.75 |
Frequently Asked Questions
Q: What wheel sizes will the GW 115 fit?
A: The GW 115 is 2.75 inches in diameter by 3.75 inches in width (69.85mm x 95.25mm) with a 0.75 inch (19.05mm) bearing bore. This smaller diameter suits compact manual pallet jacks or lift trucks with limited fork-pocket depth.
Q: Can I use the GW 115 if my jack currently has 3-inch wheels?
A: No. The GW 115 is 2.75 inches in diameter, not 3 inches. Using a smaller wheel changes the lifting geometry and load height, which can affect stability and hydraulic pressure. Verify your jack specification and purchase the exact matching diameter.
Q: What is the hub material of the GW 115 wheel?
A: The GW 115 hub is made from cast iron or steel. The polyurethane tread is bonded to this hub. The heavier hub provides better heat dissipation during extended use compared to nylon-core designs.
Q: What is the rated load cycle for the GW 115?
A: The GW 115 is rated for manual pallet jack applications at up to 200 load cycles per 8-hour shift under normal warehouse conditions. Heavy-use environments may require more frequent replacement.
Q: Is the GW 115 bearing sealed?
A: Yes, the GW 115 features precision-sealed bearings. They are sealed for life and do not require lubrication. Do not attempt to repack or modify the bearing assembly.
Q: What is the load capacity of the GW 115?
A: Wheel load capacity depends on jack model and total lifting capacity. The GW 115 is designed for standard manual pallet jacks typically rated 5500 to 8000 pounds. Check your jack nameplate for exact capacity and divide by four wheels for per-wheel load.
