Product Description

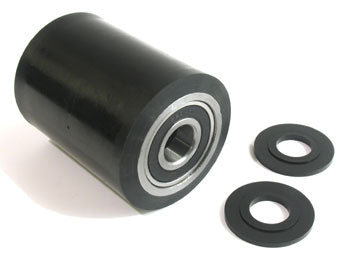

The GW 120 poly load wheel assembly is designed for use in manual pallet jack applications, providing durability and reliability for efficient material handling.
Specifications: 3.000 inch diameter x 3.750 inch width (3.000" x 3.750" | 3 x 3.75 wheel | 3 x 3-3/4 | 76.20mm x 95.25mm) | Bearing ID: 20mm (0.787 inch bore | 20.000mm ID)
• Constructed from high-quality poly material for enhanced longevity
• Smooth rolling design to reduce effort during operation
• Compatible with standard manual pallet jacks for easy replacement
This wheel assembly is an essential component for maintaining optimal performance in your pallet jack, ensuring efficient movement of goods.
Specifications
Material & Construction
| Material Specification | Polyurethane or nylon load wheels |
Part Numbers
| SKU | GW 120 |
| Product Name | GW 120 Poly Load Wheel Assembly |
Wheel Dimensions
| Outside Diameter | 3 |
| Width Side to Side | 3.75 |
Frequently Asked Questions
Q: What are the dimensions and bearing ID for the GW 120?
A: The GW 120 measures 3.000 inch diameter x 3.750 inch width (76.20mm x 95.25mm metric). It has a 20mm bearing ID (0.787 inch bore). These dimensions match the GW 119, so verify your pallet jack model documentation to confirm which part number your jack originally came with.
Q: Is the GW 120 interchangeable with the GW 119?
A: The GW 120 and GW 119 have identical outer dimensions (3.000 x 3.750 inches) and bearing ID (20mm). However, confirm in your pallet jack manual whether GW 120 is an approved equivalent for your specific model. Using an unapproved part number may void your warranty or cause compatibility issues.
Q: What material is the GW 120 wheel made from?
A: The GW 120 is constructed from high-quality polyurethane or nylon material, depending on the version you receive. Polyurethane offers better wear resistance for rough floors; nylon offers quieter operation and lower rolling resistance. Clarify the material specification with the supplier before ordering if your application requires a specific type.
Q: How do I install the GW 120 wheel assembly on my manual pallet jack?
A: Lift the pallet jack safely with blocks or a hoist so the load wheel is off the floor. Remove the retaining pin or clip from the axle shaft. Slide the old wheel off the shaft. Clean the axle shaft with a dry cloth. Slide the GW 120 wheel onto the shaft, ensuring the bearing bore slides smoothly over the shaft. Reinstall the retaining pin or clip. Repeat for the second wheel. Test rolling before returning to service.
Q: What load capacity does the GW 120 support?
A: The GW 120 load capacity depends on your pallet jack model. Refer to the pallet jack nameplate and user manual for the maximum safe working load. The wheel assembly itself is designed for standard manual pallet jack applications; do not exceed the jack manufacturers rated capacity.
