Product Description

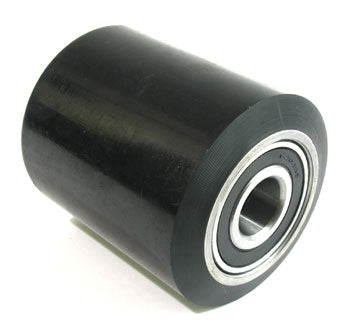

The GW 124 Poly Load Wheel Assembly is an essential component for manual pallet jacks, featuring a robust polyurethane tread and a pre-installed sealed ball bearing. This assembly is engineered to provide reliable performance and durability in load-bearing applications.
Specifications: 3.000 inch diameter x 3.380 inch width (3.000" x 3.380" | 3 x 3.38 wheel | 3 x 3.38 | 76.20mm x 85.85mm) | Bearing ID: 20mm (0.787 inch bore | 20.000mm ID)
• Durable polyurethane tread for enhanced wear resistance
• Pre-installed sealed ball bearing for smooth operation
• Designed specifically for manual pallet jack assemblies
Ensure compatibility with your specific model for optimal performance and fit.
Specifications
Material
| Wheel Construction | Polyurethane tread bonded to steel core |
| Core Material | High-strength steel |
Part Numbers
| Manufacturer Part Number | GW 124 |
Wheel Dimensions
| Outside Diameter | 3 |
| Width Side to Side | 3.38 |
Frequently Asked Questions
Q: What is the difference between GW 124 and GW 122?
A: GW 124 is wider than GW 122. GW 124 measures 3.000 inch diameter by 3.380 inch width, while GW 122 is 3.000 inch diameter by 2.750 inch width. Both have 20mm bearing ID and polyurethane tread. The extra width of GW 124 (3.38 vs 2.75 inches) provides better load distribution and stability on certain pallet jack models.
Q: Does GW 124 include pre-installed bearings?
A: Yes. GW 124 comes with a pre-installed sealed ball bearing in the 20mm bore. This is ready for immediate installation on your pallet jack axle. Do not attempt to remove or replace the bearing unless it fails, as it is factory-sealed.
Q: What is the core material and construction method?
A: GW 124 features polyurethane tread bonded to a high-strength steel core. The steel core provides rigidity and load-carrying capacity, while the bonded polyurethane absorbs impact and provides grip. This construction is more durable than nylon-core alternatives for heavy-duty manual pallet jacks.
Q: Is GW 124 suitable for heavy-duty manual pallet jack models?
A: Yes. GW 124 is engineered for reliable performance in load-bearing applications. The steel core and robust polyurethane tread make it suitable for heavy-duty manual pallet jacks, typically rated 4000 to 5500 lbs. Always confirm your jack model supports the 3.38 inch wheel width before purchase.
Q: What maintenance steps extend the life of GW 124?
A: Keep the wheel clean and dry. Periodically inspect for damage, flat spots, or tread separation. Ensure the sealed bearing spins freely without noise or grinding. Store jacks in a dry location away from extreme heat or cold. GW 124 typically lasts 3 to 5 years with proper maintenance and regular use within rated capacity.
