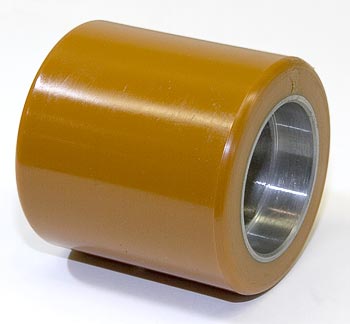

Product Description
The Crown CR 77084-001 is a durable 3.25-inch polyurethane load wheel designed for electric pallet jacks and electric lift trucks. Featuring a polyurethane tread on cast iron core with a sealed 6205-2RS bearing, this wheel delivers reliable performance and reduced maintenance in typical warehouse and dock environments. The 25mm bore size makes it a direct replacement for select Crown equipment models. Choose the CR 77084-001 for dependable grip, smooth operation, and long service life in your material handling operations.
Specifications
Dimensions
| Wheel Diameter | 3.25 inches |
| Tread Width | 3.25 inches |
| Bore Size | 25 mm |
Material & Construction
| Wheel Material | Polyurethane tread on cast iron hub |
| Bearing Type | Sealed 6205-2RS ball bearing |
Part Numbers
| Primary Part Number | CR 77084-001 |
| Cross-Reference Part Numbers | CR77084, 77084, Crown 77084, 82740, 092537S-020, 092537S-025, 092537S-10, 092537S-20, 092537S-401, 317084, 317084-001, 317084-003, 77084-001, 77084-002, 77084-003, 77084-302, 77084-305, 77084-401, 92537, CR108, 9133, S9133 |
| Equivalent Part Numbers | 82740, 92537, 317084 |
Applications
| Compatible Equipment | Crown electric pallet jacks, Crown electric lift trucks, PR 3000 Series, PE 3000 Series |
Frequently Asked Questions
Q: What are the dimensions and specifications for the CR 77084-001 load wheel?
A: The CR 77084-001 has a 3.25 inch outside diameter and 3.25 inch tread width. The bore diameter is 25 mm with a sealed 6205-2RS bearing installed. The wheel features a polyurethane tread on a cast iron core designed for electric lift truck and pallet jack applications.
Q: Which Crown equipment models does the CR 77084-001 fit?
A: The CR 77084-001 is compatible with select Crown electric lift truck and pallet jack models. Cross-reference part numbers include 77084, 82740, 317084, and various superseded part numbers (092537S-020, 092537S-025, 092537S-10, 092537S-20, 092537S-401). Verify your equipment model number against these cross-references before ordering.
Q: What is the load wheel tread material and why does it matter?
A: The CR 77084-001 uses polyurethane tread on a cast iron core. Polyurethane provides good grip on standard warehouse floors and moderate durability for regular material handling use. The sealed 6205-2RS bearing reduces maintenance by protecting against dust and contamination in typical industrial environments.
Q: Can I cross-reference the CR 77084-001 to other part numbers?
A: Yes. The CR 77084-001 has multiple cross-reference part numbers including 317084-001, 317084-003, 77084-002, 77084-003, 77084-302, 77084-305, and 77084-401. These numbers may appear in different supplier catalogs or OEM documentation. Always confirm dimensions and bearing specifications match your equipment before substituting parts.
Q: What bearing type is installed in the CR 77084-001?
A: The CR 77084-001 includes a 6205-2RS sealed ball bearing. The 2RS designation means the bearing has sealed shields on both sides to keep contaminants out. This bearing type is standard for load wheels on electric pallet trucks and electric lift trucks operating in typical warehouse conditions.
