Product Description

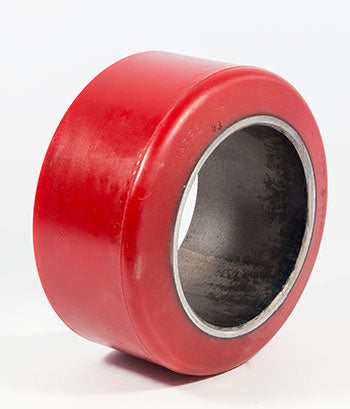

A specialized tire designed for electric lift trucks
Specifications: 10.000 inch diameter x 5.000 inch width (10.000" x 5.000" | 10 x 5 wheel | 10 x 5 | 254.00mm x 127.00mm)
Specifications
Description
| Product Description | 10 x 5 x 6.5 sf ez |
Part Numbers
| Manufacturer Part Number | SU 10 X 5 X 6.5-SF-EZ |
Wheel Specifications
| Outside Diameter (in) | 10.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 254.00 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Material | Cushothane EZ 85A |
Frequently Asked Questions
Q: What does Cushothane EZ 85A material mean, and how does it differ from standard polyurethane?
A: Cushothane EZ 85A is a proprietary elastomer blend with a Shore A hardness of 85, providing a softer, more compliant surface than standard rigid polyurethane. The EZ designation indicates ease of installation and reduced run-in time. At 85A durometer, this material absorbs shock better, reducing vibration and noise while protecting sensitive equipment on electric lift trucks. It is ideal for delicate material handling in pharmaceutical, food, or electronics facilities.
Q: How do I determine if the SU 10 X 5 X 6.5-SF-EZ is compatible with my lift truck?
A: Verify three dimensions: hub bore diameter (6.5 inches), tire outside diameter (10 inches), and tire width (5 inches). The SU 10 X 5 X 6.5-SF-EZ has a smooth flat profile and fits all standard 10x5 six-point-five bore electric pallet jacks and hand trucks. Check your lift truck nameplate or measure the existing hub bore with a caliper. If your lift truck uses a different bore (6.25, 7, or 8 inches), this tire will not fit.
Q: What is the load rating and pressure recommendation for Cushothane EZ 85A tires?
A: Do not apply pressure or inflate Cushothane EZ tires. They are press-on drive tires with no air valve and are not pneumatic. Load capacity depends on the hub material and lift truck frame rating. Most 10x5 electric pallet jacks with EZ tires support 3000-5000 pounds. Consult your lift truck nameplate for exact capacity. Do not exceed this limit, as overloading accelerates tire wear and can cause separation from the hub.
Q: Is the SU 10 X 5 X 6.5-SF-EZ tire compatible with both drive and load wheels?
A: No. The SF-EZ designation specifically indicates a drive tire (powered wheel) with a smooth flat profile. It is not rated for use on load wheels (non-driven support wheels). Installing a drive tire on a load wheel position will cause improper weight distribution and accelerated wear. Always use load wheel tires in the non-driven positions and drive tires only on powered axles.
Q: How often should I inspect and replace a Cushothane EZ 85A tire?
A: Inspect every 3-6 months under heavy use (20+ hours per week). Look for cracks, flattening at the contact point, or glazing (shiny surface indicating hardening). With proper maintenance, Cushothane EZ tires last 2-4 years. Replace immediately if cracks exceed 1/8 inch deep, if the tire is visibly separated from the hub, or if traction decreases noticeably. Keep stored tires in a cool, dark location away from UV light.
Q: What tools are required to replace the SU 10 X 5 X 6.5-SF-EZ tire on my electric lift truck?
A: You will need a tire press (hand pump or hydraulic), an industrial heat gun set to 250-300 degrees Fahrenheit, a rubber scraper, and a bolt set to secure the lift truck frame during tire removal. Do not use rubber mallets or impact tools, which can damage the hub bore. Heat the hub for 2-3 minutes until the old tire separates easily. Remove completely, scrape residual rubber clean, then press the new SF-EZ tire straight onto the hub bore until fully seated.
