Product Description

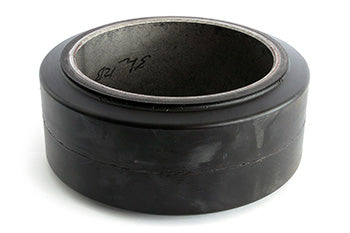

Poly Press-On Tire for superior electric pallet jack. 13 inch outside diameter, 5.5 inch tread width, 9.5 inch bore diameter. Constructed from non-marking ASTM D622 polyurethane and steel bonding core. Designed for electric lift trucks and compatible industrial warehouse vehicles.
Specifications: 13.000 inch diameter x 5.500 inch width (13.000" x 5.500" | 13 x 5.50 wheel | 13 x 5-1/2 | 330.20mm x 139.70mm)
Specifications
Material & Construction
| Bonding Layer Material | Steel core with chemical bond for press-on mounting |
Part Numbers
| Manufacturer Part Number | SU 13 X 5.5 X 9.5-FT-P |
| OEM Part Number | SU13X55X95FTP |
Wheel Specifications
| Outside Diameter (in) | 13.000 |
| Width (in) | 5.500 |
| Outside Diameter (mm) | 330.20 |
| Width (mm) | 139.70 |
| Material | Polyurethane |
Frequently Asked Questions
Q: Is the SU 13 X 5.5 X 9.5-FT-P a press-on or bolt-on tire?
A: The SU 13 X 5.5 X 9.5-FT-P is a press-on tire with a steel core chemically bonded to the polyurethane. It requires a tire press to mount and dismount. Do not attempt to bolt this tire or use hand tools to force it onto the wheel. Improper installation will break the bond and cause the tire to slip or separate during operation, creating a safety hazard.
Q: What press force is required to install the SU 13 X 5.5 X 9.5-FT-P?
A: Use a tire press rated for 25 to 35 tons of force for the 13 inch diameter. The press must have a smooth, flat die plate to avoid indenting the polyurethane. Apply pressure slowly and evenly. If resistance exceeds press capacity, stop and inspect the rim bore and tire ID for contamination, debris, or rim damage. Clean both surfaces and retry.
Q: Can I mix the press-on FT-P tire with bolt-on tires on the same truck?
A: No. Do not mix press-on and bolt-on tires on the same truck. Different mounting methods create unequal loading and wear patterns. All four tires must use the same installation type. If you transition from bolt-on to press-on, replace the complete set and verify rim bores are clean and undamaged before installation.
Q: How long does the polyurethane bond last on the FT-P tire?
A: The chemical bond between steel core and polyurethane is permanent if the tire remains press-fitted and undisturbed. Once removed from the rim, the tire cannot be reliably reinstalled on the same core. Do not attempt to reuse a removed press-on tire. Discard and replace with a new tire.
Q: What causes press-on tires to slip on the rim during operation?
A: Slippage occurs from: (1) insufficient press force during installation (verify press capacity and apply full force), (2) contamination on rim bore or tire ID (oil, dust, rust), (3) rim bore deformation or damage, (4) undersized rim for tire ID. If slippage occurs, remove the tire immediately, inspect the rim for damage, and clean both surfaces thoroughly before reinstalling with verified press force.
