Product Description

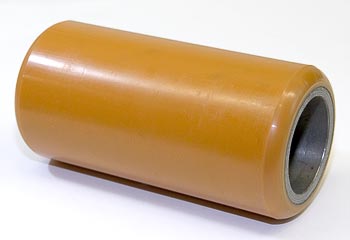

Industrial polyurethane wheel (SKU 1500155-55) for electric lift trucks. Constructed from high resilience polyurethane tread (Shore A 95) bonded to a QT450 x 10 ductile iron wheel center. Suitable for pallet trucks and electric stackers in warehouse and low temperature settings. Bore diameter 47 mm, tread width 70 mm, diameter 80 mm, with 14 mounting holes. Rated for 450 kg per wheel, non-gumming and abrasion resistant.
Specifications
Material & Construction
| Tread Material | High resilience polyurethane (Bayer, Mitsubishi origin) |
| Wheel Center Material | Ductile iron, grade QT450 x 10 |
| Polyurethane Hardness | Shore A 95 |
Part Numbers
| Manufacturer Part Number | 1500155-55 |
| OEM Part Number | 1500155-55 |
Frequently Asked Questions
Q: What are the metric dimensions of the 1500155-55?
A: The 1500155-55 wheel has a diameter of 80 mm, bore diameter of 47 mm, and tread width of 70 mm. It features 14 mounting holes for securing to the wheel center.
Q: What is the rated load capacity?
A: The 1500155-55 is rated for 450 kg per wheel. This rating applies when the wheel is properly installed on compatible electric pallet trucks and stackers.
Q: What material is the wheel center and why does it matter?
A: The wheel center is made from ductile iron grade QT450 x 10, which provides excellent strength and durability under repeated loading. Ductile iron resists impact damage better than cast iron alternatives.
Q: Is the polyurethane tread suitable for low temperature use?
A: Yes. The high resilience polyurethane tread remains flexible in cold storage and warehouse environments. It resists gumming and maintains traction even at freezer temperatures.
Q: What is the durometer rating and what does it indicate?
A: The tread hardness is 95 Shore A, indicating a semi-firm polyurethane compound. This hardness provides abrasion resistance and wear life while maintaining grip on hard floors without excessive marking.
Q: Which electric lift truck brands use this wheel?
A: The 1500155-55 is compatible with electric pallet trucks from Crown, Toyota, Raymond, Yale, and other standard warehouse equipment manufacturers using 47 mm bore and 80 mm diameter wheel specifications.
