Product Description

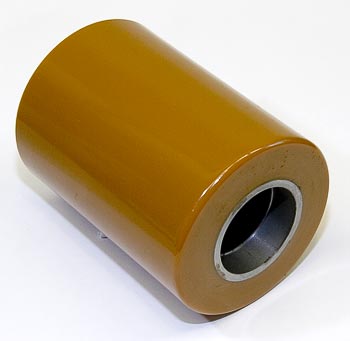

Polyurethane load wheel SKU 65269600 for electric lift trucks; measures 3.25 inch diameter by 4.5 inch tread width; constructed with cast iron core and abrasion-resistant polyurethane tread, 50 Shore D hardness, rated static 3000 lbs. Supersedes Yale YT065269601-SUP and equivalent to 065269601-SUP. Precision ball bearing, machined hub. Temperature range -40°F to 180°F.
Specifications
Material & Construction
| Core Material | Cast iron |
| Finish | Machined hub with uncoated steel finish |
Part Numbers & Compatibility
| OEM Part Number | 65269600 |
| Cross-Reference Part Numbers | Yale 065269601-SUP; Yale YT065269601-SUP; Superior Cushionthane 3.25 x 4.5 LW |
| Supersedes Part Numbers | YT065269601-SUP |
| Equivalent Part Numbers | 65269600; 065269601-SUP |
Performance
| Service Factor | 1.0 at rated load |
Frequently Asked Questions
Q: What are the dimensions and load rating of the 65269600 load wheel?
A: The 65269600 measures 3.25 inch outside diameter with a 4.5 inch tread width. It carries a static load rating of 3000 lbs and is designed for electric lift truck applications.
Q: What core material and polyurethane specifications does the 65269600 use?
A: The 65269600 features a cast iron core with abrasion-resistant polyurethane tread rated at 50 Shore D hardness. This combination provides durability in high-wear warehouse environments.
Q: What is the operating temperature range for the 65269600?
A: The 65269600 is rated for operation between -40 degrees Fahrenheit and 180 degrees Fahrenheit, making it suitable for both cold storage and standard warehouse use.
Q: What are the cross-reference and superseded part numbers for the 65269600?
A: The 65269600 cross-references to Yale 065269601-SUP and Yale YT065269601-SUP. It supersedes part number YT065269601-SUP. The wheel includes a precision ball bearing and machined hub with uncoated steel finish.
Q: What bearing type does the 65269600 load wheel use?
A: The 65269600 uses a precision ball bearing in a machined hub configuration, providing smooth rotation and extended service life under typical warehouse loading conditions.
