Product Description

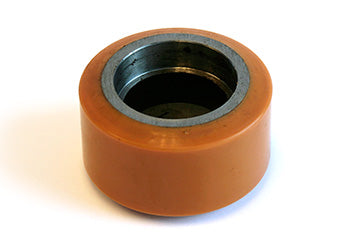

Polyurethane drive wheel, 3.25 inch OD, 2.45 inch tread width, 2.87 inch hub width, 2.04 inch bearing bore. Constructed of 95D durometer polyurethane bonded to precision-machined steel hub. OEM part number 800044554; cross-reference WH-544-95D. Suited for electric pallet jack and lift truck applications requiring high wear resistance and non-marking performance.
Specifications
Material
| Tread Material | Polyurethane, 95 Shore D hardness |
| Finish | Natural polyurethane over raw machined hub |
Part Numbers
| OEM Part Number | 800044554 |
| Cross-Reference Part Numbers | WH-544-95D |
| Supersedes/Equivalent Part Numbers | Replaces WH-544-95D, compatible with select pallet jack and walkie truck models |
Frequently Asked Questions
Q: What are the exact dimensions of the 800044554 drive wheel?
A: The 800044554 has a 3.25 inch outer diameter, 2.45 inch tread width, 2.87 inch hub width, and 2.04 inch bearing bore diameter. These dimensions allow direct compatibility with select electric pallet jack and lift truck axle assemblies.
Q: What is the cross-reference part number for the 800044554?
A: The 800044554 cross-references to WH-544-95D and replaces that part number. If you have equipment using WH-544-95D wheels, the 800044554 is a direct substitute.
Q: What material and hardness is the 800044554 drive wheel made from?
A: The 800044554 is constructed from 95 Shore D durometer polyurethane bonded to a precision-machined steel hub. The 95D hardness provides high wear resistance and non-marking performance suitable for warehouse flooring.
Q: Which electric lift truck manufacturers use wheels compatible with the 800044554?
A: The 800044554 is compatible with select pallet jack and walkie truck models from major OEM manufacturers such as Crown, Toyota, Raymond, Yale, and Hyster. Cross-check your equipment specifications to confirm dimension compatibility before ordering.
Q: What is the construction of the 800044554 wheel and hub?
A: The wheel features natural polyurethane tread bonded over a raw machined steel hub. This bonded construction provides durability and prevents wheel separation under the high loads of electric lift truck operation.
