MU 90100-01-9-HD
MU 90100-01-9-HD
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

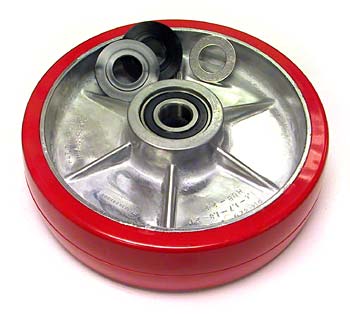

The MU 90100-01-9-HD steering wheel assembly is engineered for Multiton manual pallet jacks equipped with hand control systems. This direct replacement component features an ultra-polyurethane wheel with aluminum hub construction and factory-installed sealed bearings. The assembly delivers reliable steering performance and durability in warehouse and distribution environments, compatible with Multiton TM, M, J series, HP5, and HPL models.
Specifications
Material & Construction
| Tread Material | Ultra-Poly polyurethane compound |
| Hub Material | Aluminum alloy casting |
| Bearing Material | Precision-ground steel races with hardened rollers |
Assembly & Bearings
| Assembly Includes | Factory-installed sealed bearings |
Part Numbers & Compatibility
| Manufacturer Part Number | MU 90100-01-9-HD |
| Alternate Model Numbers | 90100019HD, 90100 01 9 HD |
| Cross-Reference Part Numbers | Interchangeable with MU 90100-01-P-HD (polyurethane variant) |
| Equipment Compatibility | Multiton TM, M, J series, HP5, HPL hand control models |
Frequently Asked Questions
Q: Which Multiton manual pallet jack models are compatible with the MU 90100-01-9-HD steering wheel?
A: The MU 90100-01-9-HD is designed for Multiton manual pallet jack models TM, M, J series, HP5, and HPL equipped with hand control systems. Verify your model and serial range before ordering to ensure compatibility.
Q: What are the key dimensions and specifications for the MU 90100-01-9-HD?
A: This steering wheel assembly features an and , and aluminum hub construction with ultra-polyurethane tread.
Q: What type of bearings are included in the MU 90100-01-9-HD assembly?
A: The assembly includes factory-installed sealed bearings. The sealed bearing design protects against contamination and extends the service life of the steering wheel assembly.
Q: Is the MU 90100-01-9-HD interchangeable with the MU 90100-01-P-HD?
A: Both the MU 90100-01-9-HD and MU 90100-01-P-HD are ultra-polyurethane variants designed for Multiton hand control pallet jacks. Verify that matches your equipment before substituting parts.
Q: What advantages does the ultra-polyurethane tread material offer?
A: Ultra-polyurethane tread provides durability, consistent grip on standard warehouse floors, resistance to wear, and reliable steering performance under load conditions typical of manual pallet jack operation.
Q: How should the MU 90100-01-9-HD steering wheel assembly be maintained?
A: Periodically inspect the sealed bearings for smooth rotation and the aluminum hub for cracks or damage. Wipe away dirt and debris from the tread surface to maintain steering control. Replace if bearings become noisy or wheel steering becomes sluggish.
Q: What does the bolt circle pattern mean?
A: The bolt circle pattern refers to the mounting specification—the diameter of the circle formed by the hub bolt holes. This pattern ensures proper fit on compatible Multiton pallet jack models.
Q: Can this steering wheel be stored for extended periods?
A: Yes. Store the MU 90100-01-9-HD in a clean, dry location away from extreme temperatures or direct sunlight. Avoid stacking heavy items on top of the wheel, which can deform the tread or damage bearings.
