Product Description

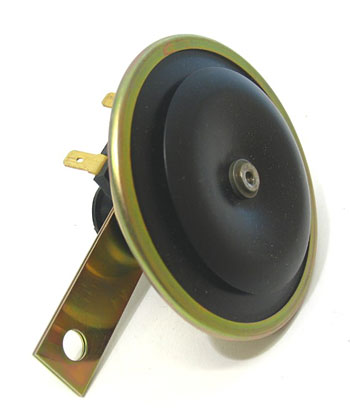

Prime Mover PR 23309-01 Horn is a 24VDC, 110 dB electric horn designed for BT Prime Mover electric lift trucks. Manufactured with an impact-resistant polymer enclosure, the horn features push-on blade terminals and mounts with a single frame bolt. Specified for intermittent-duty cycles and equipped for robust vibration resistance, this part is engineered for high-intensity mobile industrial use.
Specifications
Electrical
| Rated Operating Voltage | 24VDC |
| Sound Output | 110 dB |
| Current Draw | 1.5A at 24VDC |
Part Numbers
| OEM Part Number | PR 23309-01 |
| Alternative Part Numbers | PR23309-01, PM 23309-01, PR2330901, PM2330901, 2330901 |
Performance
| Duty Cycle | Intermittent, suitable for 120 cycles/hour maximum |
Frequently Asked Questions
Q: What voltage and sound output does the PR 23309-01 deliver?
A: The PR 23309-01 operates at 24VDC nominal and produces 110 dB sound output. This high-intensity horn is suitable for high-traffic industrial environments and material handling operations.
Q: What is the current draw of the PR 23309-01 at 24VDC?
A: The PR 23309-01 draws 1.5A at 24VDC nominal voltage. This electrical specification is critical for verifying circuit compatibility and preventing electrical overload on truck wiring and control systems.
Q: What is the duty cycle rating for the PR 23309-01?
A: The PR 23309-01 is rated for intermittent-duty cycles with a maximum of 120 cycles per hour. Continuous-duty operation above this specification may reduce horn lifespan and reliability.
Q: What enclosure material does the PR 23309-01 use?
A: The PR 23309-01 features an impact-resistant polymer enclosure designed to withstand vibration and mechanical stress common in mobile industrial environments. This material provides durability and environmental protection.
Q: What terminal type and cross-reference part numbers are available for the PR 23309-01?
A: The PR 23309-01 features push-on blade terminals for quick connection and removal. Alternative part numbers include PR23309-01, PM 23309-01, PR2330901, PM2330901, and 2330901. All refer to the same 24VDC horn assembly.
Q: Is the PR 23309-01 compatible with Prime Mover and BT lift trucks?
A: Yes. The PR 23309-01 is engineered for BT Prime Mover electric lift trucks equipped with 24VDC systems and compatible horn mounting brackets. Verify your truck model and voltage before ordering.
