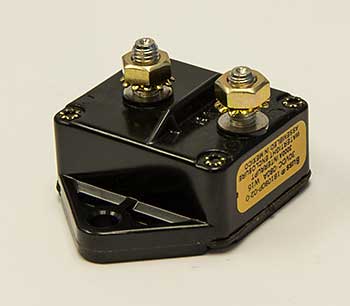

80a Circuit Breaker for BT Prime Mover Electric Lift Truck
PR 301890-002
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Circuit breaker rated at 80 amperes continuous duty for 24VDC electrical systems in BT Prime Mover walkie pallet trucks including RMX, HMX. Main power circuit protection component mounted in electrical panel assembly, working in conjunction with transistor speed controller and 15A control circuit breaker. Manufacturer part number 301890-002 replaces 301890-000 in specific applications, interfaces with specified cable assemblies and bus bar configurations per OEM electrical schem
Specifications
Part Numbers & Compatibility
| Make | BT Prime Mover |
| Model | RMX, HMX, PMX45 |
| Manufacturer Part Number | 301890-002 |
| Cross-Reference Part Numbers | Replaces 301890-000 in certain applications |
| Compatible Equipment Models | BT Prime Mover RMX, HMX serieswalkie pallet trucks |
Electrical Specifications
| Current Rating | 80 amperes continuous duty |
| System Voltage | 24VDC electrical system application |
Additional Specifications
| Circuit Type | Power circuit protection for main electrical system |
| Circuit Function | Main power distribution breaker for drive and hydraulic circuits |
| Related Control Circuit Breaker | Used in conjunction with 15A control circuit breaker part number 25275-06 |
| Associated Cable Assemblies | Interfaces with cables 49856-11, 49856-15, 49856-66 per assembly drawings |
| Bus Bar Components | Connects to bus bars 302348-000, 302350-000, 302351-000, 302352-000 depending on configuration |
| Reference Assembly Drawing | Figure 5911-000 electrical schematic for installation configuration |
Frequently Asked Questions
Q: Which BT Prime Mover truck models is this part compatible with?
A: This part is compatible with BT Prime Mover RMX, HMX, and PMX45 series walkie pallet trucks.
Q: What material is this part made from and how durable is it?
A: This part is constructed from high-quality materials designed for long-term durability and reliable performance in industrial environments.
Q: How do I know if this part is the right replacement for my equipment?
A: Verify your truck model and electrical schematic to ensure compatibility. This part replaces the 301890-000 in certain applications.
Q: What circuit function does this part provide?
A: This part provides main power circuit protection for 24vdc systems. It interfaces with specified cable assemblies and bus bar configurations.
