Battery Charger Assembly for Prime Mover PMX45, BT, and Raymond

PR 310079-000

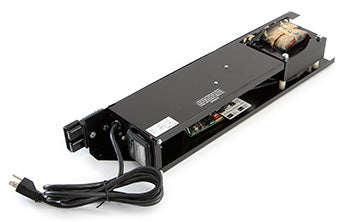

PR 310079-000 24V Battery Charger Assembly for Prime Mover, BT, and Raymond Lift Trucks

$602.76
$602.76 $724.18
Shipping calculated at checkout.
In stock
⚠️ Compatibility Recommended Before Purchase
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.

Before ordering, confirm:
  • Truck make and model
  • Serial number
  • Battery voltage
  • Battery type (lead-acid vs lithium)
  • Connector style

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
  • Expert support & fitment help
  • 30-day returns
  • Fast Shipping
Battery Chargers Electric Lift Truck Parts Accessories Prime Mover

Compatibility

Make

Prime Mover, BT, Raymond

Model

WSX20, WSX25, RAS20, RAS25, PMX45

Visit our diagram page for part references to popular models

Product Description

Prime Mover PR 310079-000 Battery Charger Assembly is designed for 24VDC electric pallet jack and lift truck battery maintenance. Features 120VAC input, 10A output, mechanical timer, integral safety fuse, and robust metal chassis. Direct replacement for earlier Prime Mover charger models and compatible with Prime Mover and BT electric lift truck battery systems. Ideal for warehouse and material handling environments requiring reliable battery charging.

Specifications

Part Numbers & Compatibility
MakePrime Mover, BT, Raymond
ModelWSX20, WSX25, RAS20, RAS25, PMX45
Part Number310079-000
Cross-Reference Part NumbersReplaces PR 27233-05, PR 313426-000; equivalent to BT 310079-000
Cross Reference Part NumbersReplaces PR 27233-05, PR 313426-000; equivalent to BT 310079-000
Electrical Specifications
Voltage24 V
Amperage25 A
Charge Profileconventional
Connector TypeSB175
Battery Chemistrylead-acid
Battery Connector Type302322-000 plug, two-pin battery connector, strain relief type
Performance Specifications
Fuse Type and Rating10A glass cartridge fuse (AC side)
Duty CycleContinuous duty, 100% rated for maintenance charging
Additional Specifications
Timer Specification12-hour mechanical timer, 60Hz
Capacitor Specification4MFD (microfarad) at rated voltage
Transformer Assembly302328-000 transformer, dedicated for 24VDC charger circuit

Frequently Asked Questions

Q: What voltage and current does the PR 310079-000 battery charger deliver?
A: The PR 310079-000 delivers 24VDC at 25A continuous on the DC side. Input is 120VAC, 60Hz single phase.

Q: Which makes and models is the PR 310079-000 compatible with?
A: The PR 310079-000 is compatible with Prime Mover, BT, and Raymond electric lift trucks. It fits models including WSX20, WSX25, RAS20, RAS25, and PMX45.

Q: What type of battery chemistry does the PR 310079-000 support?
A: The PR 310079-000 is designed for lead-acid battery systems.

Q: What connector type does the PR 310079-000 use?
A: The PR 310079-000 uses an SB175 connector type.

Q: Is the PR 310079-000 a direct replacement for other chargers?
A: Yes, the PR 310079-000 is a direct replacement for earlier Prime Mover chargers. It is functionally equivalent to BT 310079-000.

Q: What safety features does the PR 310079-000 include?
A: The PR 310079-000 includes an integral safety fuse that protects the charger and connected battery circuit from overcurrent conditions.
