Product Description

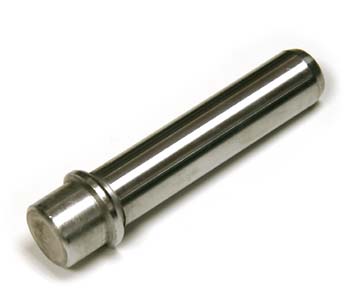

Hydraulic pump piston assembly for Uline manual pallet jack models H-1043, H-1193, H-1366, H-1484, and H-1491. Manufacturer part number H-1043-B147 with cross-reference H-1366-B147. This critical reciprocating component is positioned as item 31 in the hydraulic pump assembly, interfacing with the cylinder cap, seal system, and spring assembly to enable manual lifting operations. Direct replacement for factory-spec pump assemblies.
Specifications
Associated Components
| Adjacent Seal Components | Interfaces with Y-ring H-1043-B141, O-ring H-2721-B142, dust ring H-1043-B145 |
| Mating Cylinder Component | Operates within cylinder cap assembly H-1043-B143 |
| Spring System Interface | Engages with washer H-1043-B148 and compression spring H-1483-B149 |
| Check Valve Interaction | Actuates steel ball check valve H-1043-B146N during stroke cycle |
Functional Classification
| System Position | Item 31 in hydraulic pump diagram, positioned between cylinder cap and spring assembly |
Part Numbers & Compatibility
| Manufacturer Part Number | H-1043-B147 |
| Cross-Reference Part Numbers | H-1366-B147, B147 |
| Compatible Equipment Models | Uline H-1043, H-1193, H-1366, H-1484, H-1491 pallet jack hydraulic units |
| Assembly Integration | Component of pump assembly H-1043PUMP and complete hydraulic unit H-1043BP100 |
Frequently Asked Questions
Q: Which Uline pallet jack models are compatible with the H-1043-B147 piston assembly?
A: The H-1043-B147 hydraulic pump piston assembly fits Uline models H-1043, H-1193, H-1366, H-1484, and H-1491. Verify your equipment model before ordering to confirm compatibility.
Q: What is the cross-reference part number for the H-1043-B147?
A: The H-1043-B147 has a documented cross-reference part number of H-1366-B147. Both part numbers refer to the same hydraulic pump piston assembly component.
Q: What function does the H-1043-B147 piston assembly serve?
A: The H-1043-B147 is the reciprocating piston component in the hydraulic pump assembly, positioned as item 31. It interfaces directly with the cylinder cap, seal system, and spring assembly to create the pumping action that generates hydraulic pressure for manual lifting operations.
Q: Is the H-1043-B147 part of a larger hydraulic assembly?
A: Yes. The H-1043-B147 is a critical component of pump assembly H-1043PUMP and is included in the complete hydraulic unit H-1043BP100. This part should be ordered only when performing repair or replacement of pump subassembly components.
Q: What material is the H-1043-B147 piston manufactured from?
A: Specific material composition and detailed manufacturing specifications for the H-1043-B147 are not published in available documentation. Contact the parts department for material specification details if required for your application.
Q: Can the H-1043-B147 be used as a replacement in non-Uline equipment?
A: The H-1043-B147 is designed exclusively for Uline hydraulic pump assemblies. Cross-compatibility with other manufacturers such as Crown, Toyota, or Raymond cannot be confirmed without detailed dimensional and specification matching.
