Contact Kit for Raymond Electric Lift Truck
RA 1-105-096-01
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

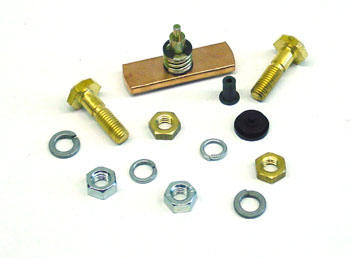

OEM Raymond RA 1-105-096-01 contact kit for electric lift truck contactor assemblies. Designed for 7400/7420/7440 series. 300A rated copper alloy contacts with compression spring and high-temp insulator. Direct replacement for OEM electrical contacts, compatible with 24VDC/36VDC systems.
Specifications
Material & Construction
| Material | Copper alloy |
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7400, 7420, 7440 |
| Voltage Compatibility | Compatible with 24VDC and 36VDC lift systems (Raymond electric lift truck family spec) |
| Part Number | RA 1-105-096-01 |
| Application | Electric lift truck contactor assemblies |
Electrical Specifications
| Current Rating | 300A |
Additional Specifications
| Description | OEM Raymond RA 1-105-096-01 contact kit for electric lift truck contactor assemblies. Designed for 7400/7420/7440 series. 300A rated copper alloy contacts with compression spring and high-temp insulator. Direct replacement for OEM electrical contacts, compatible with 24VDC/36VDC systems. |
| Insulator Type | High-temp insulator |
Frequently Asked Questions
Q: What models is the RA 1-105-096-01 contact kit compatible with?
A: The RA 1-105-096-01 is compatible with Raymond 7400, 7420, and 7440 series electric lift trucks.
Q: What material are the contacts made from in the RA 1-105-096-01?
A: The RA 1-105-096-01 features copper alloy contacts with a compression spring and high-temperature insulator. The copper alloy construction provides reliable electrical conductivity and durability under heavy-duty electric lift truck operation.
Q: How do I know if the RA 1-105-096-01 is the right replacement part for my equipment?
A: Verify your Raymond lift truck model and serial range to ensure compatibility. The RA 1-105-096-01 is designed as a direct replacement for contactor assemblies in Raymond 7400, 7420, and 7440 series electric lift trucks.
Q: What voltage systems is the RA 1-105-096-01 contact kit compatible with?
A: The RA 1-105-096-01 is compatible with both 24vdc and 36vdc electric lift truck systems. Verify your equipment voltage before ordering to ensure compatibility.
Q: What is the current rating for the RA 1-105-096-01 contact kit?
A: This contact kit is rated for 300 amps. It is designed as a direct replacement for contactor assemblies in Raymond 7400, 7420, and 7440 series electric lift trucks.
