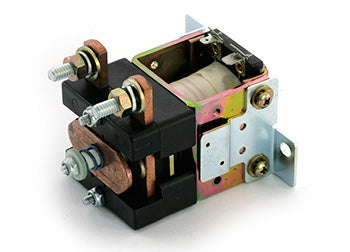

100 Amp Contactor for Raymond Electric Lift Trucks
RA 1-105-232-100
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
The RA 1-105-232-100 is a 100-amp electrical contactor designed for Raymond electric pallet jack motor circuits. This crucial component acts as a high-capacity electrical switch, enabling reliable power distribution to lift and drive motors in 24V and 48V DC systems. Built for heavy-cycle warehouse and dock environments, this contactor manages switching loads while protecting motor circuits from overload conditions. Essential for maintaining optimal performance in electric pallet truck operations where consistent electrical switching is critical for operator safety and equipment reliability.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 4100, 4200, 4150, 4250, 7400, 7420, 7440, 7500, 7520, 7700, 7720, 9600, 9700, PDPM-186, PDPM-85 |
Additional Specifications
| SKU | RA 1-105-232-100 |
Frequently Asked Questions
Q: What models of Raymond electric lift trucks is the RA 1-105-232-100 compatible with?
A: The RA 1-105-232-100 is compatible with Raymond electric lift trucks including models 4100, 4200, 4150, 4250, 7400, 7420, 7440, 7500, 7520, 7700, 7720, 9600, 9700, PDPM-186, and PDPM-85.
Q: What is the function of the RA 1-105-232-100 contactor?
A: The RA 1-105-232-100 contactor acts as an electrical switch that connects and disconnects power to the lift motor based on signals from the control system. It helps protect the circuit by interrupting current flow when the truck is idle.
Q: How do I know if I need to replace the RA 1-105-232-100?
A: Replace the RA 1-105-232-100 if you notice unusual noises, such as buzzing or arcing inside the contacts, or if there are delays in motor response. These signs indicate potential failure that requires full replacement.
Q: What materials is the RA 1-105-232-100 made from?
A: The RA 1-105-232-100 is constructed from durable materials designed to withstand the demanding conditions of warehouse and dock environments. It is built for long-term use in electric lift truck applications.
