Foot Switch for Raymond, TVH, Hendley, JLG Electric Lift Truck
RA 1-150-327
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

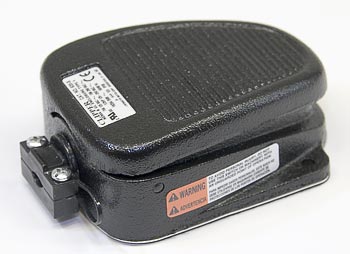

Raymond RA 1-150-327 Foot Switch (SCR control) for electric lift trucks. OEM part offers durable pedal actuation and SPDT control for SCR drive systems. Compatible with Raymond forklift models that utilize SCR foot switch configuration. Includes silver alloy contacts, die-cast aluminum housing, and powder-coated steel pedal for industrial reliability.
Specifications
Part Numbers & Compatibility
| Make | Raymond, TVH, Hendley, JLG |
| Model | 632S, FI207636, FI375391, HJ632S, JL92202 |
| Part Number | RA 1-150-327 |
| Manufacturer Part Number | Raymond 1-150-327 |
| Equivalent Part Numbers | RA1-150-327 |
Electrical Specifications
| Electrical Rating | 10A at 125VAC / 5A at 250VAC resistive load |
| Control Circuit Voltage | Suitable for 24VDC control systems |
Performance Specifications
| Duty Cycle | 100% continuous; rated for extended industrial service |
Additional Specifications
| Wire Connection | Screw terminal; 14-18 AWG compatible |
| Body Material | Die-cast aluminum housing |
| Pedal Material | High-strength steel, ASTM A36 |
| Description | Raymond RA 1-150-327 Foot Switch (SCR control) for electric lift trucks. OEM part offers durable pedal actuation and SPDT control for SCR drive systems. Compatible with Raymond forklift models that utilize SCR foot switch configuration. Includes silver alloy contacts, die-cast aluminum housing, and powder-coated steel pedal for industrial reliability. |
Frequently Asked Questions
Q: What models is the RA 1-150-327 compatible with?
A: The RA 1-150-327 is compatible with Raymond, TVH, Hendley, and JLG electric lift trucks including models 632S, FI207636, FI375391, HJ632S, and JL92202.
Q: What materials are used in the RA 1-150-327 construction?
A: The RA 1-150-327 features silver alloy contacts for reliable electrical conductivity, a die-cast aluminum housing for structural durability, and a powder-coated steel pedal designed to resist corrosion and wear in industrial environments.
Q: How do I know if the RA 1-150-327 is the right replacement part for my equipment?
A: Verify your equipment's model specification sheet to confirm compatibility. The RA 1-150-327 is designed for Raymond, TVH, Hendley, and JLG electric lift trucks that use scr control configurations.
Q: What type of contacts does the RA 1-150-327 use?
A: The RA 1-150-327 uses spdt (single pole double throw) contacts for switching between two circuits. This configuration allows the switch to route control signals in scr brake and acceleration systems.
Q: Are there other part numbers that can be used as a replacement for the RA 1-150-327?
A: The RA 1-150-327 is interchangeable with ra1-150-327 (same part, alternate formatting). No other superseding part numbers are available.
